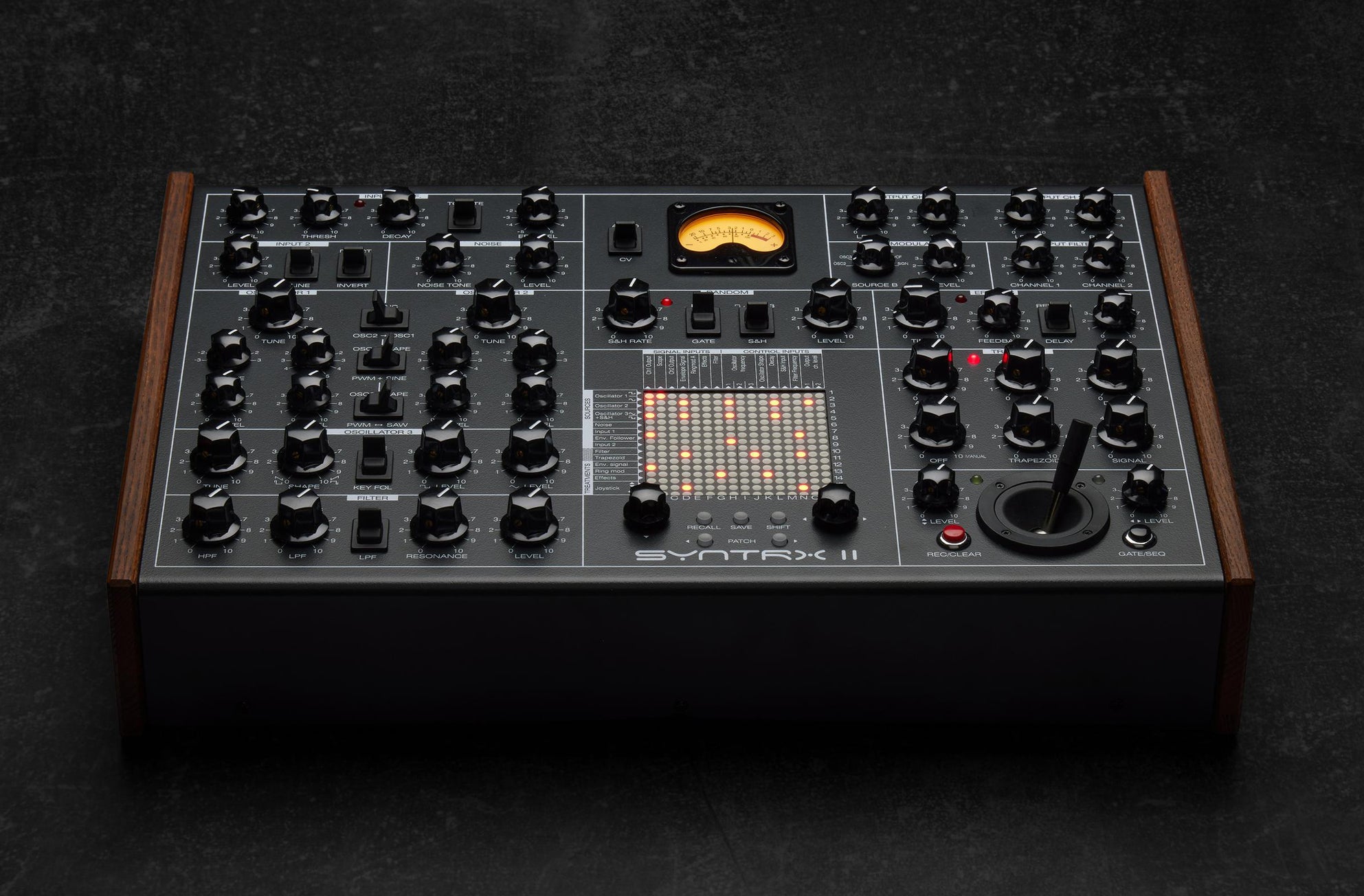

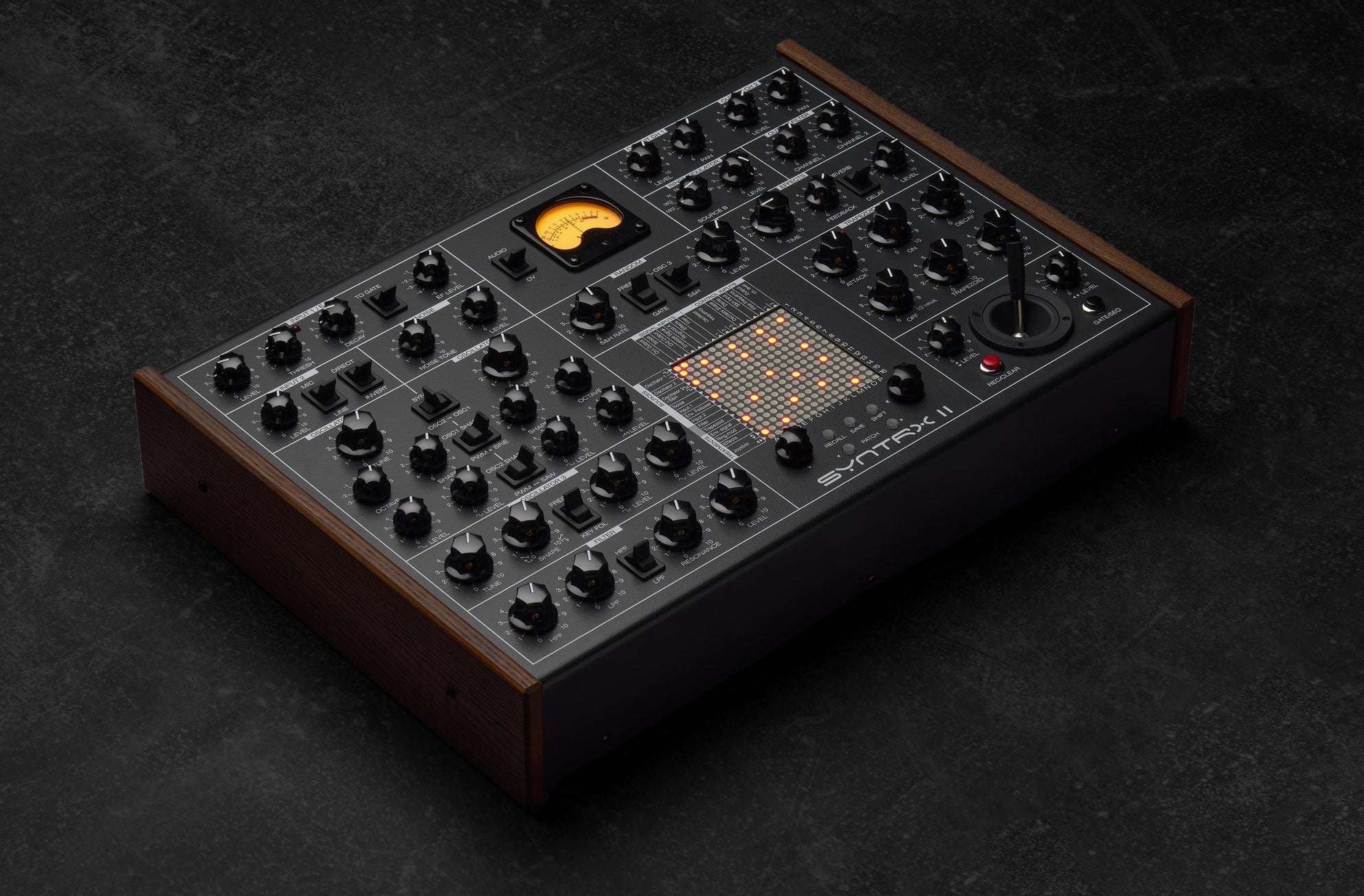

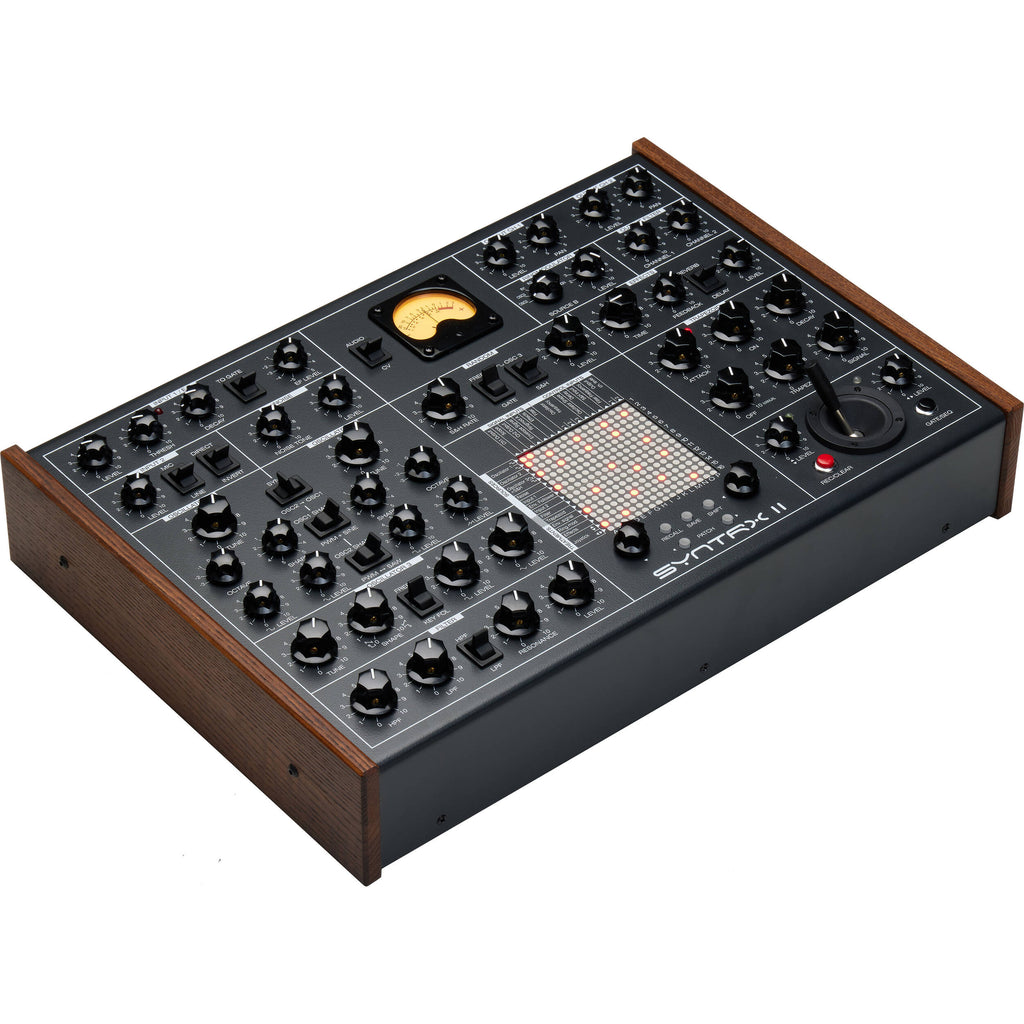

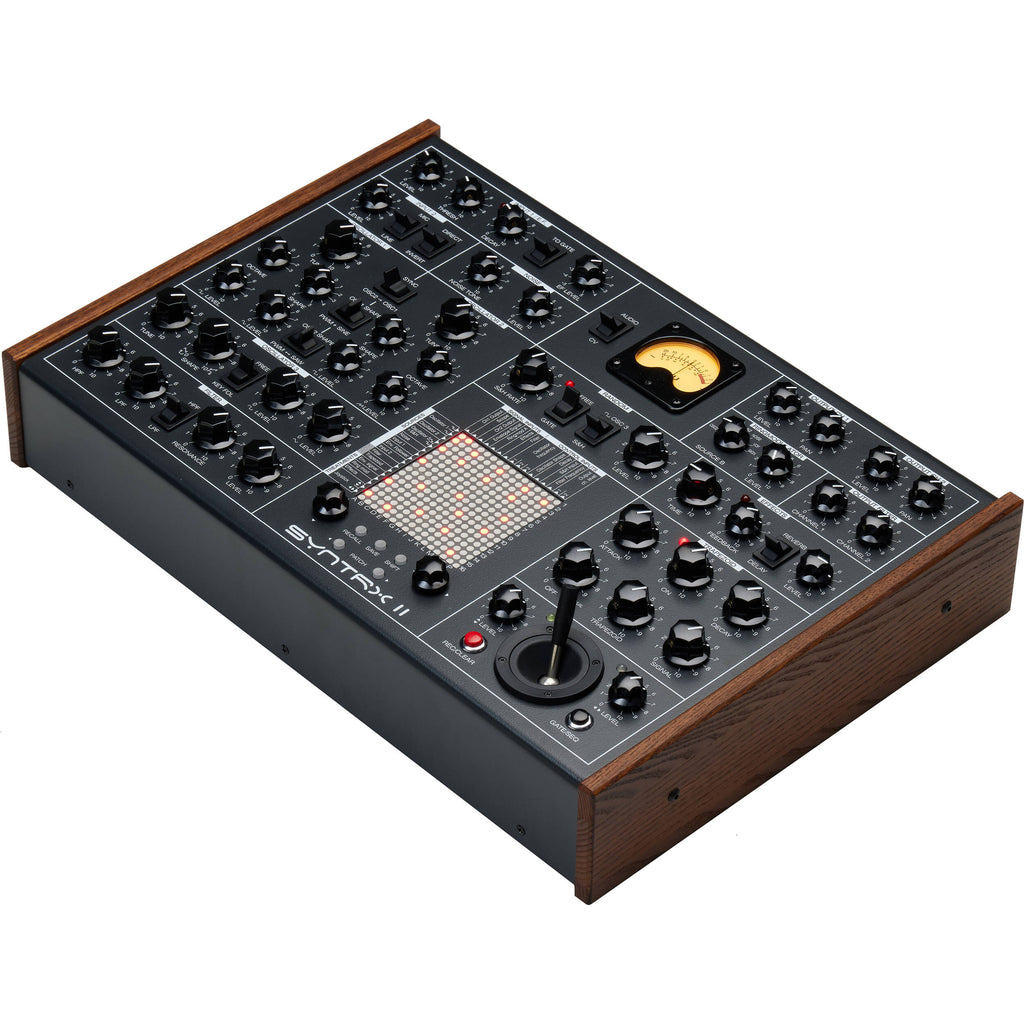

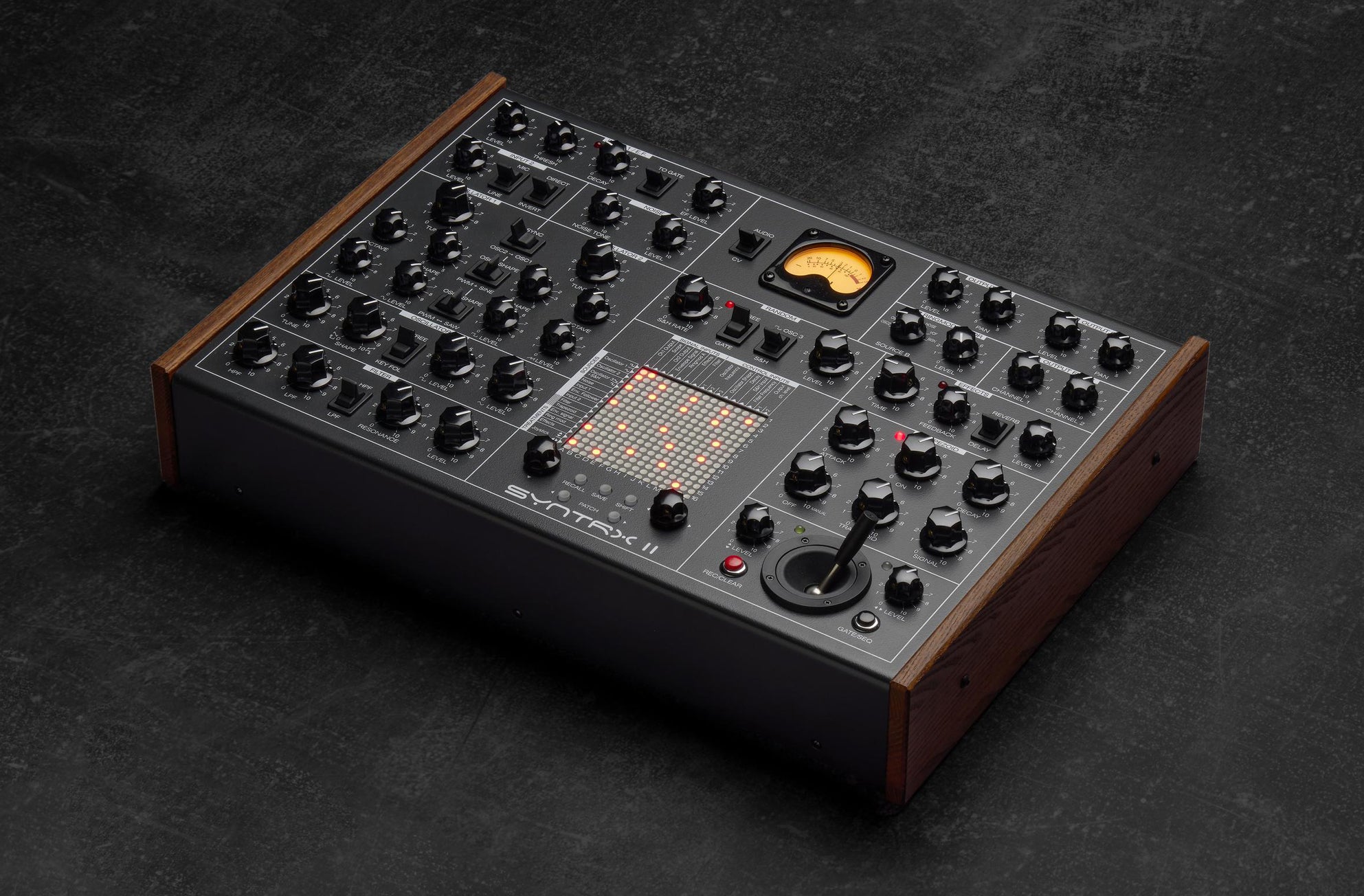

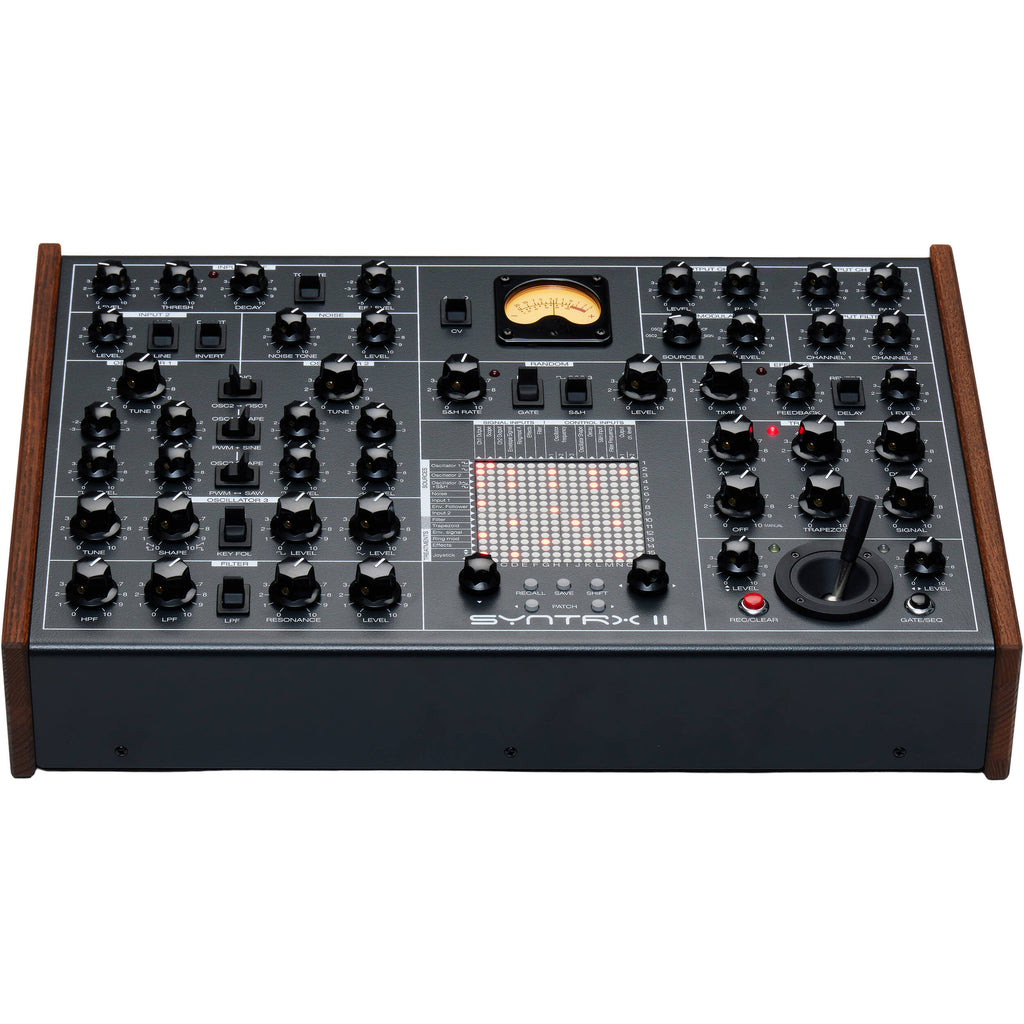

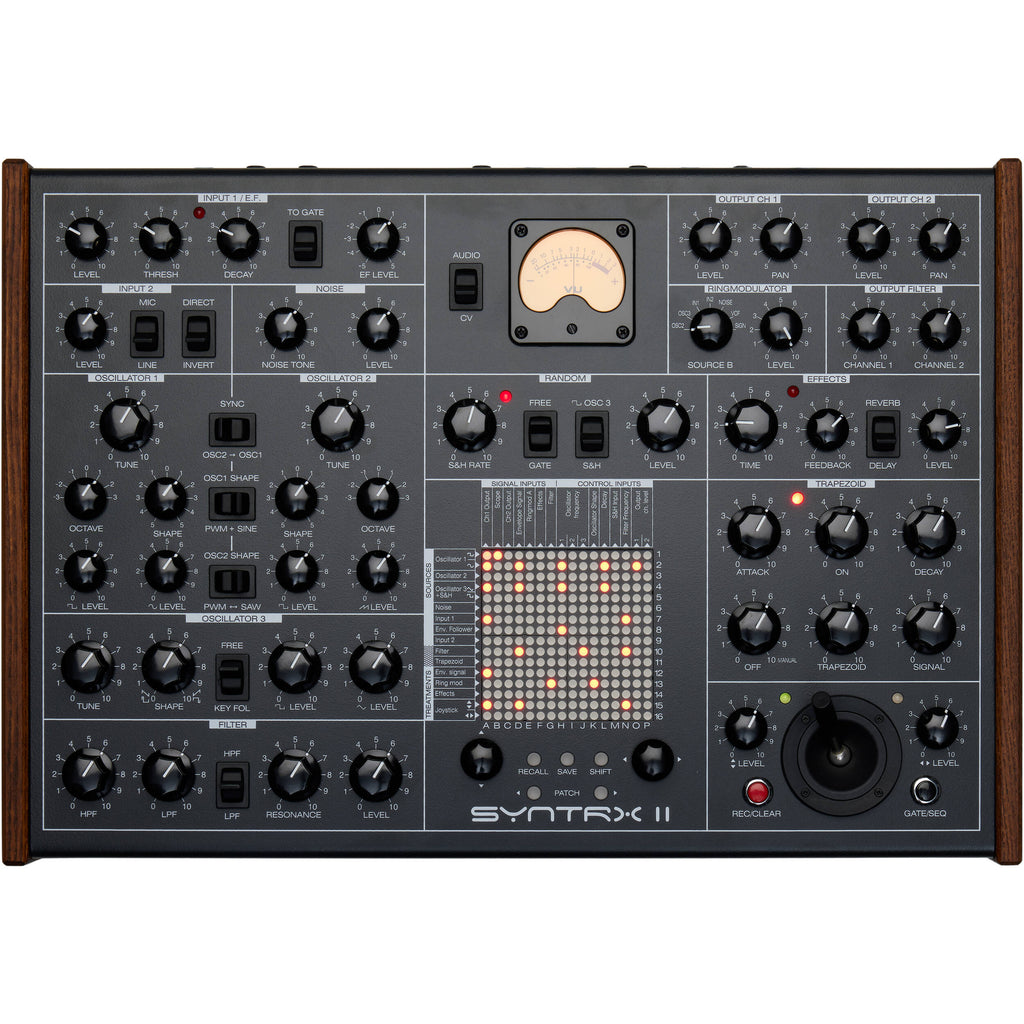

Erica Synths SYNTRX II – Analogue Desktop Synth Inspired by Synthi AKS

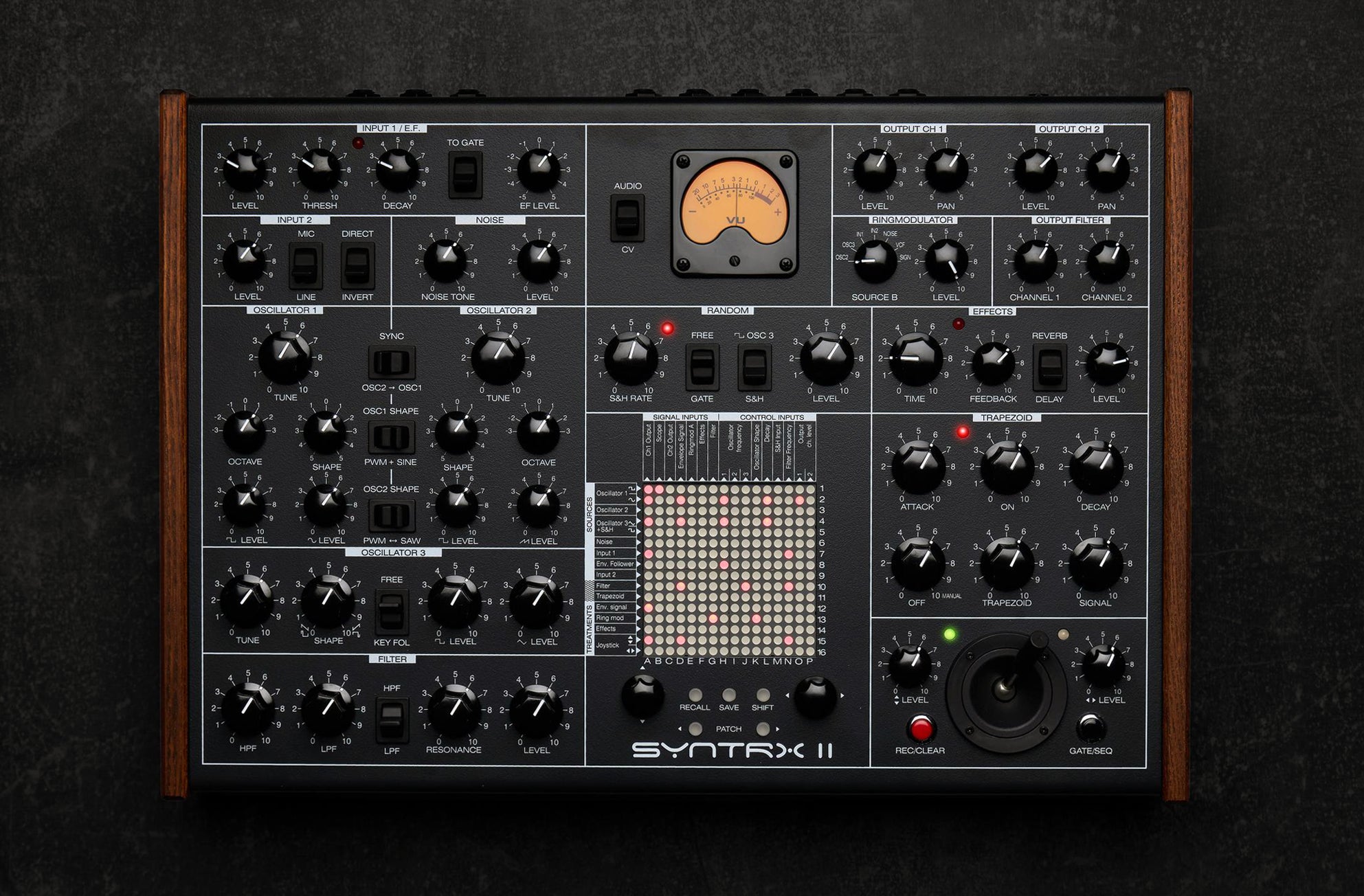

The SYNTRX II channels the spirit of the EMS Synthi AKS into a modern instrument. It merges three analogue oscillators, a recordable joystick, a digitally controlled analog patch matrix, built-in FX, and a piano-roll sequencer—all wrapped in an expressive, performance-ready desktop design. It’s experimental sound design and tactile control in one interface, crafted for adventurous creators.

Galvenās iezīmes

• Three analogue VCOs: Two main oscillators with CV-controlled waveshaping and sync, plus a modulation oscillator that doubles as LFO or sound source
• Stylized filters: Series-connected high-pass and low-pass filters with resonance for sculpting voices and textures
• Live-shaping tools: Ring modulator, multi-colour noise, looping trapezoid envelope generator with VCA, and two output VCAs
• Joystick controller: Recordable X/Y joystick with attenuator and manual gate for dynamic modulation
• Analog patch matrix: 16×16 digitally controlled crosspoint matrix with three attenuation levels per connection, storing up to 254 patches
• FX section: Built-in delay and reverb powered by DSP, giving spacious ambience without external gear
• Piano-roll sequencer: Integrated step sequencer with two stepper modulation sources for rhythmic and melodic programming

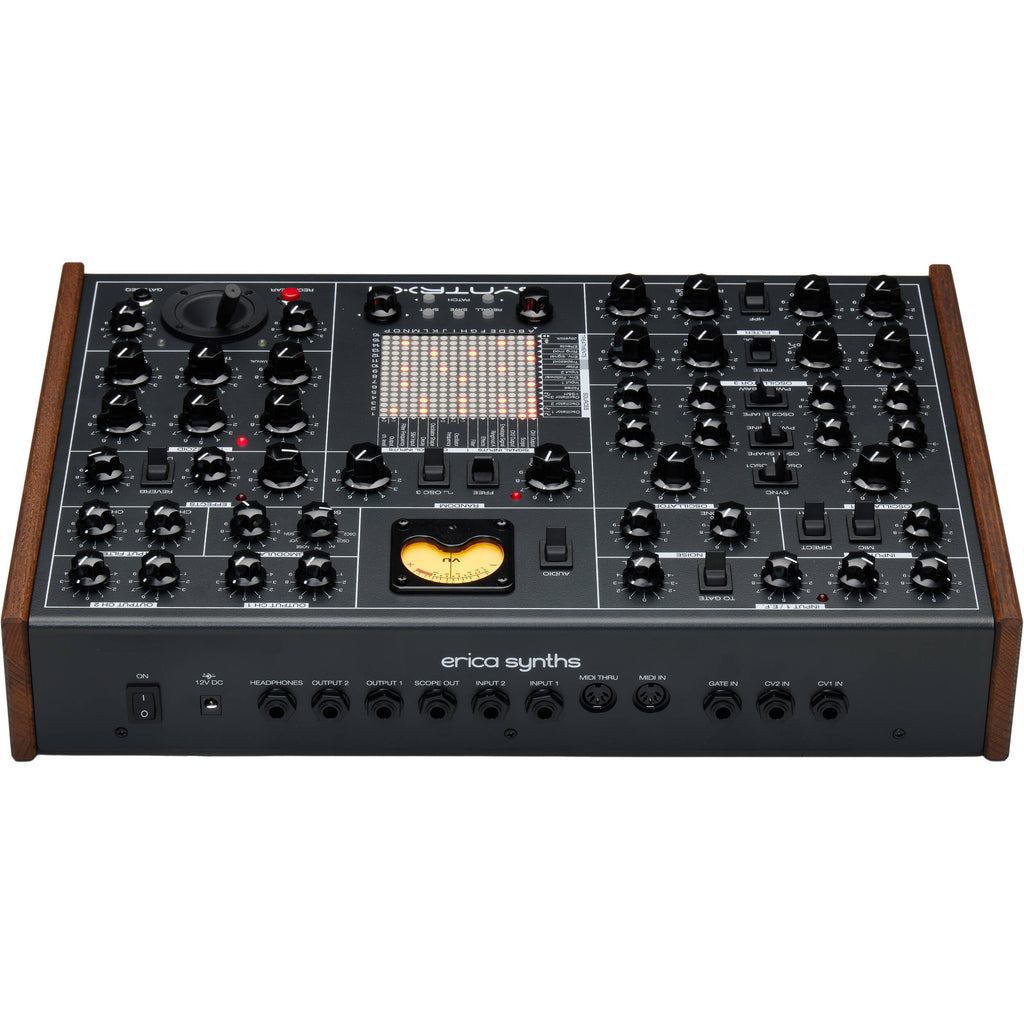

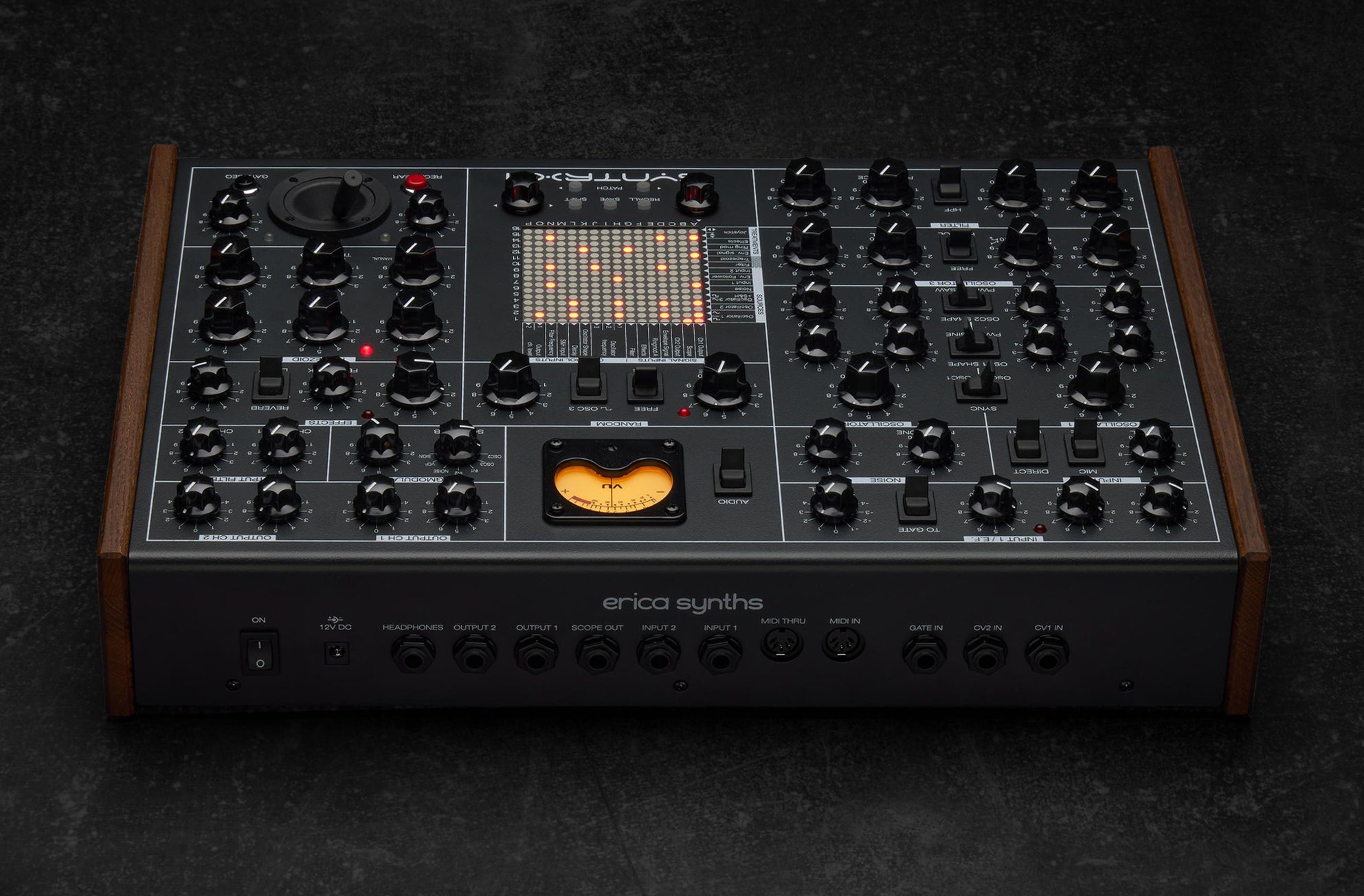

• Inputs & I/O: Two DC-coupled instrument inputs with inversion and envelope followers, audio/CV scope output, CV inputs, Gate In, MIDI In/Thru, assignable outputs, headphone output, and VU meter

Priekšrocības

SYNTRX II is a modular playground in a desktop form. It empowers sonic adventurers to craft drones, glitches, basslines, and evolving soundscapes without patch cables. The joystick and sequencer invite organic performance, while patch recall and FX integration keep the workflow focused and expressive.

Īsas specifikācijas

• Oscillators: 3 analogue VCOs with waveshaping and sync
• Filters: Series HPF + LPF with resonance
• Mod tools: Ring mod, noise, trapezoid envelope, VCAs, LFO
• Joystick: X/Y recordable with attenuator and gate
• Patch matrix: 16×16 with 3 levels, 254-patch memory
• Sequencer: Piano-roll with modulation steppers
• FX: Delay and reverb
• I/O: Audio, CV/Gate, MIDI, headphone, assignable outs
• Izmēri: 45.7 × 30.9 × 11.5 cm
• Svars: ~3.9 kg
• Barošana: 12 V DC adapter (included)

Komplektācijā

• Erica Synths SYNTRX II unit
• 12 V DC power adapter
• User manual

Piemērots

Perfect for experimental musicians, modular users, and sound designers. Excels at producing evolving textures, unpredictable drones, complex sequences, and expressive performance patches without patch cables.

Saderība

Integrates with modular, desktop, and DAW environments via DC-coupled I/O, CV/Gate, MIDI, and audio. Patch recall and joystick performance make it live- and studio-ready.

Plusi un mīnusi

✅ Plusi:

• Fully analog engine with digital patch control
• Patch recall and joystick for hands-on modulation
• Built-in sequencer and FX for complete performance

⚠️ Mīnusi:

• Complex workflow may challenge beginners
• Large desktop footprint requires space

The Erica Synths SYNTRX II is a fearless analog explorer—rooted in retro design, fueled by modern flexibility, and built for live creativity. Bold, tactile, and endlessly engaging.
