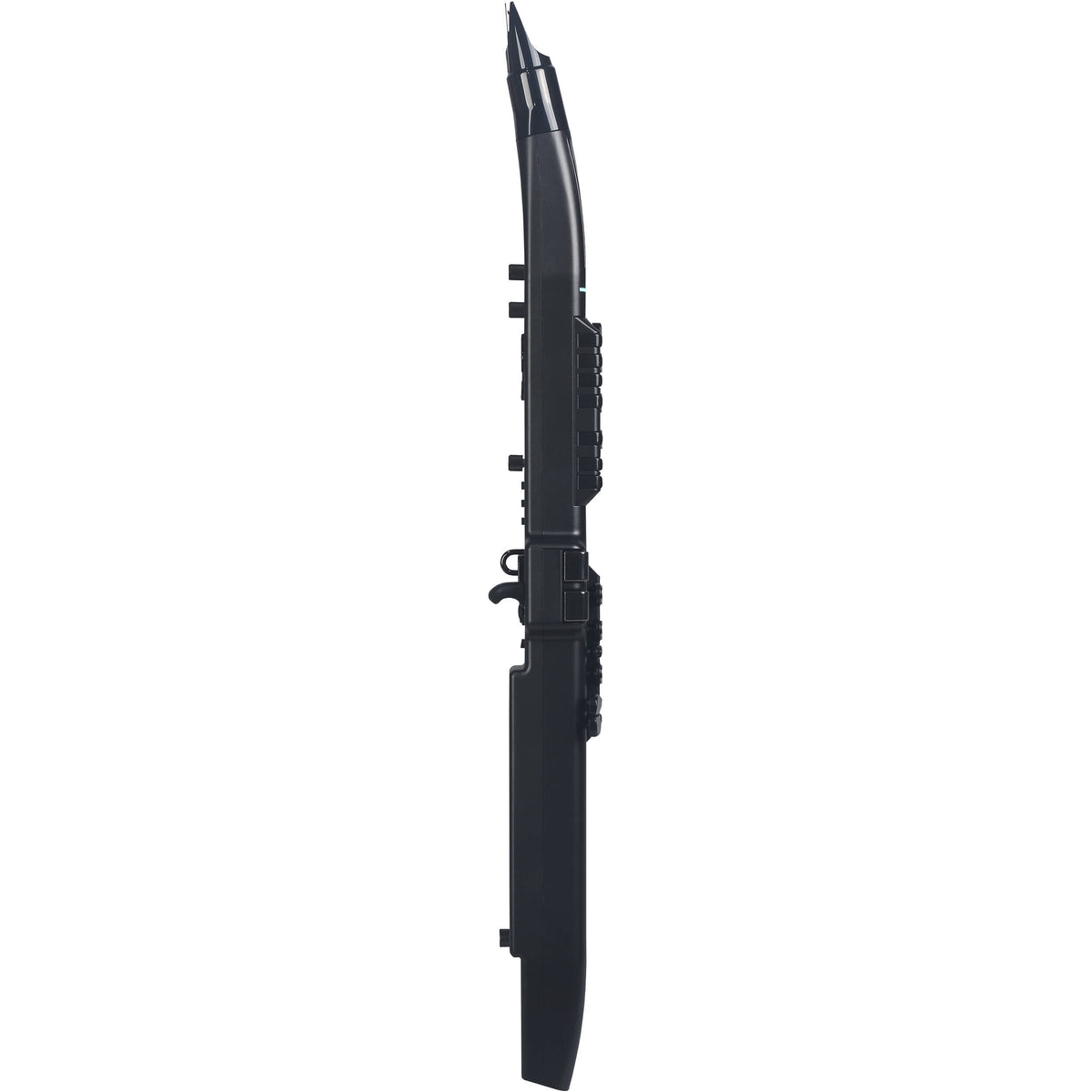

ASM Diosynth – Advanced Wind Synthesizer with Woodwind Feel

The ASM Diosynth blends the familiar tactile feel of a woodwind instrument with cutting-edge synthesis. With moving keys, a breath sensor, reed and bite controls, gyroscope/motion input, joystick/modulation pads and a powerful twin-engine sound system, the Diosynth gives wind players unprecedented expressive flexibility—pieejams Soundium.

Galvenās iezīmes

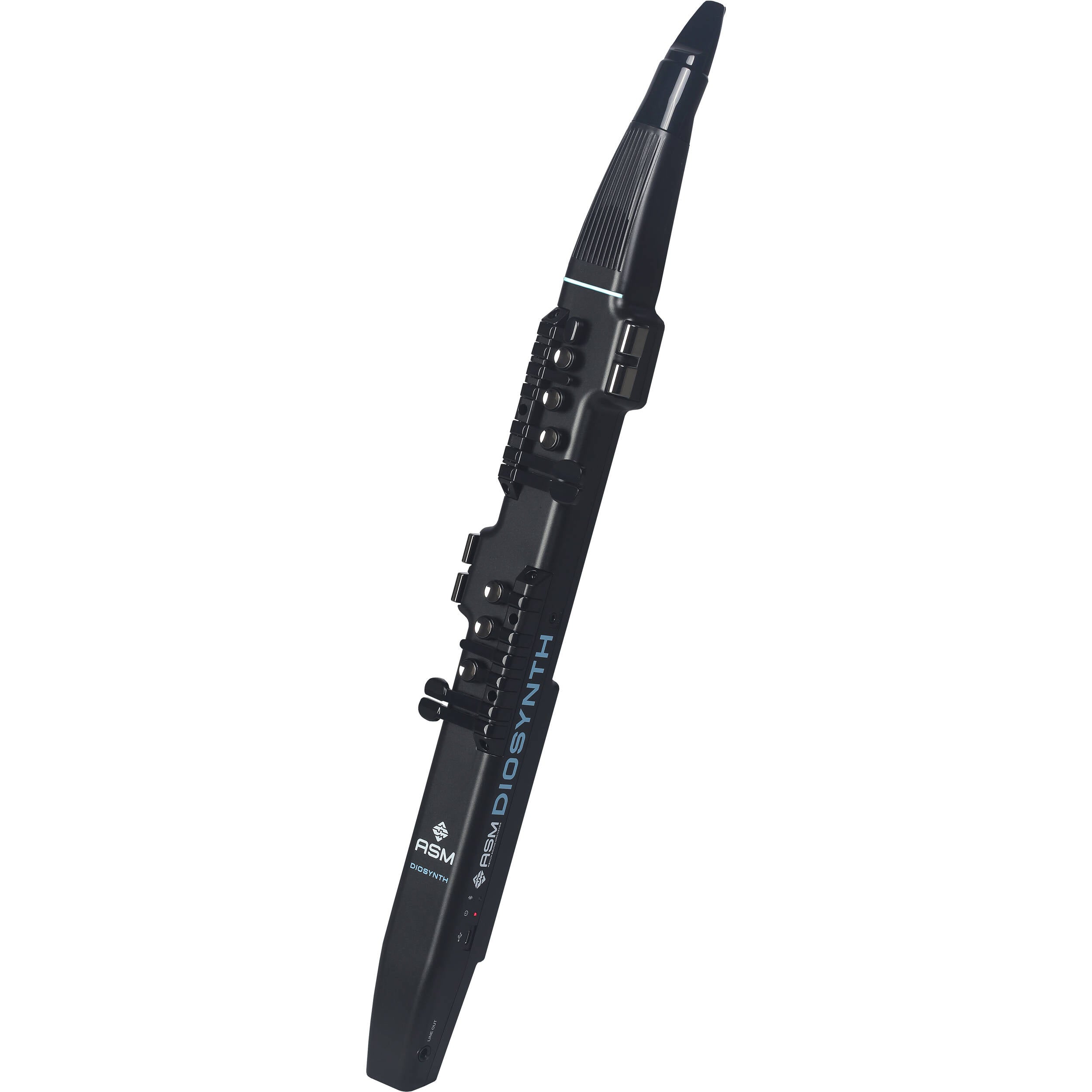

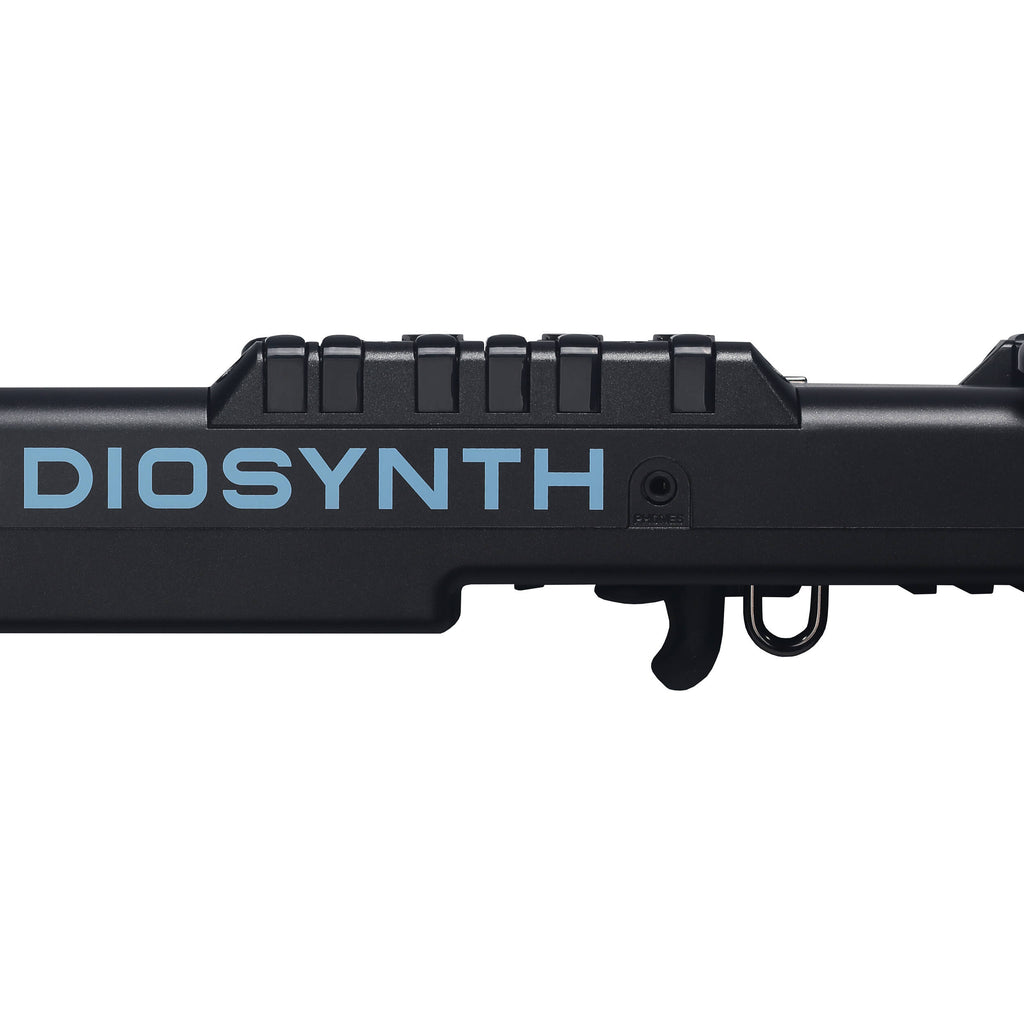

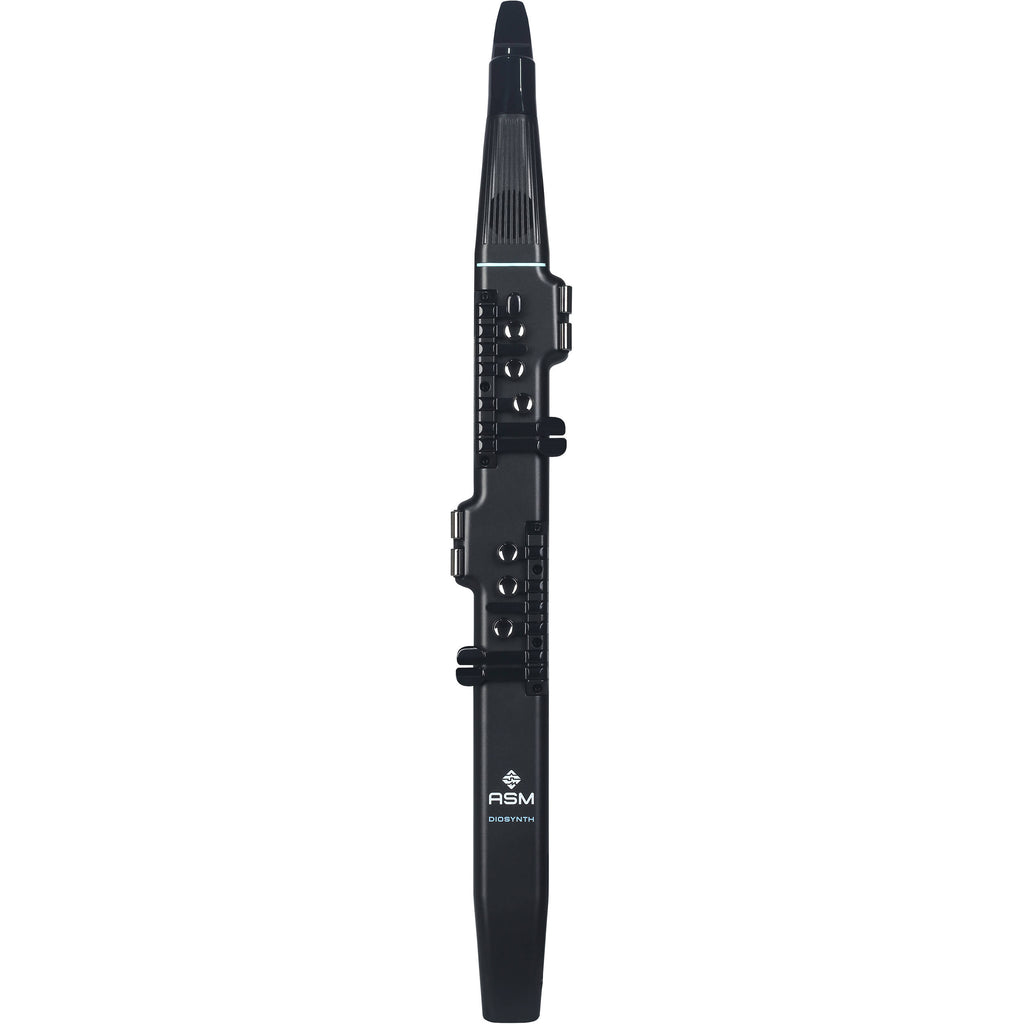

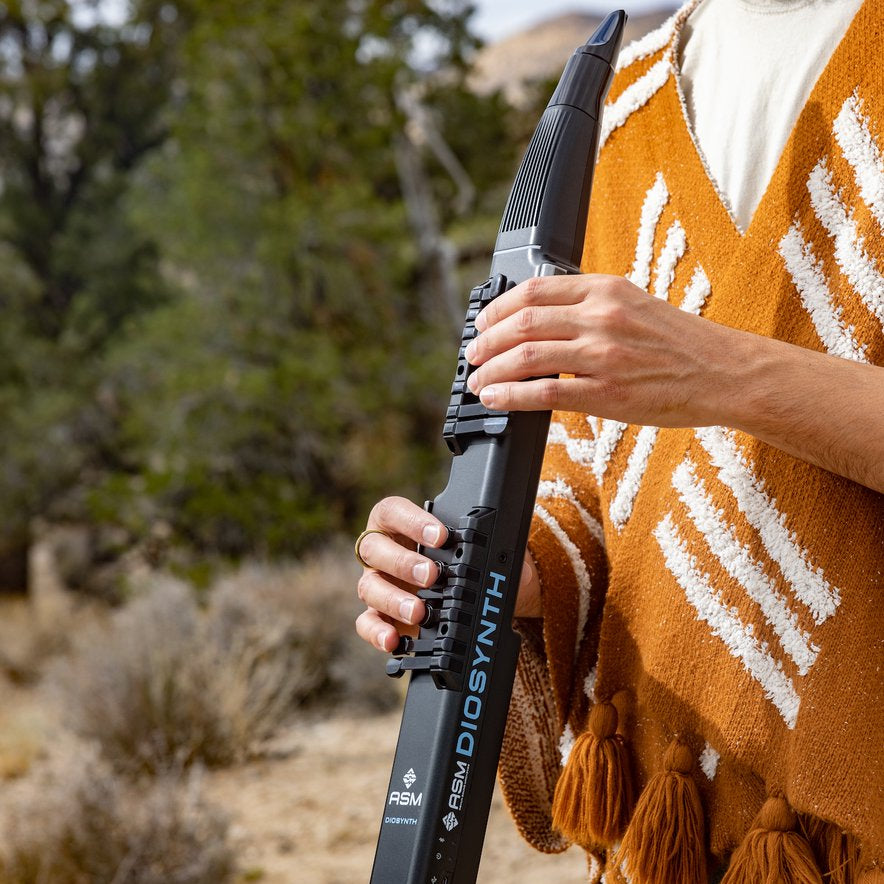

• Woodwind keywork & fingering modes: Real moving keys (not flat sensors), with multiple fingering modes including Sax, Flute, Recorder and Trumpet to ease the transition from acoustic wind instruments.
• Breath and bite sensors: Responsive reed sensor and breath sensor capture expressive dynamics and control modulation in real time.

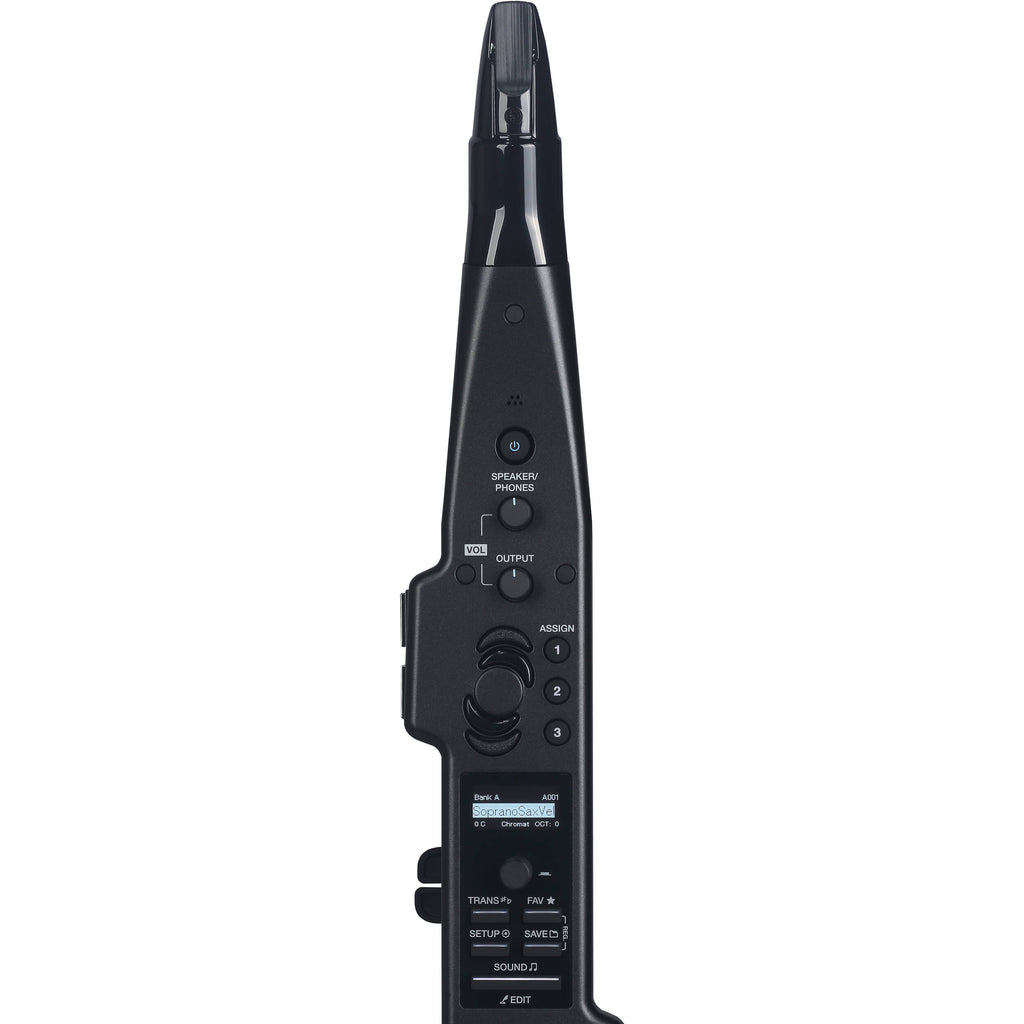

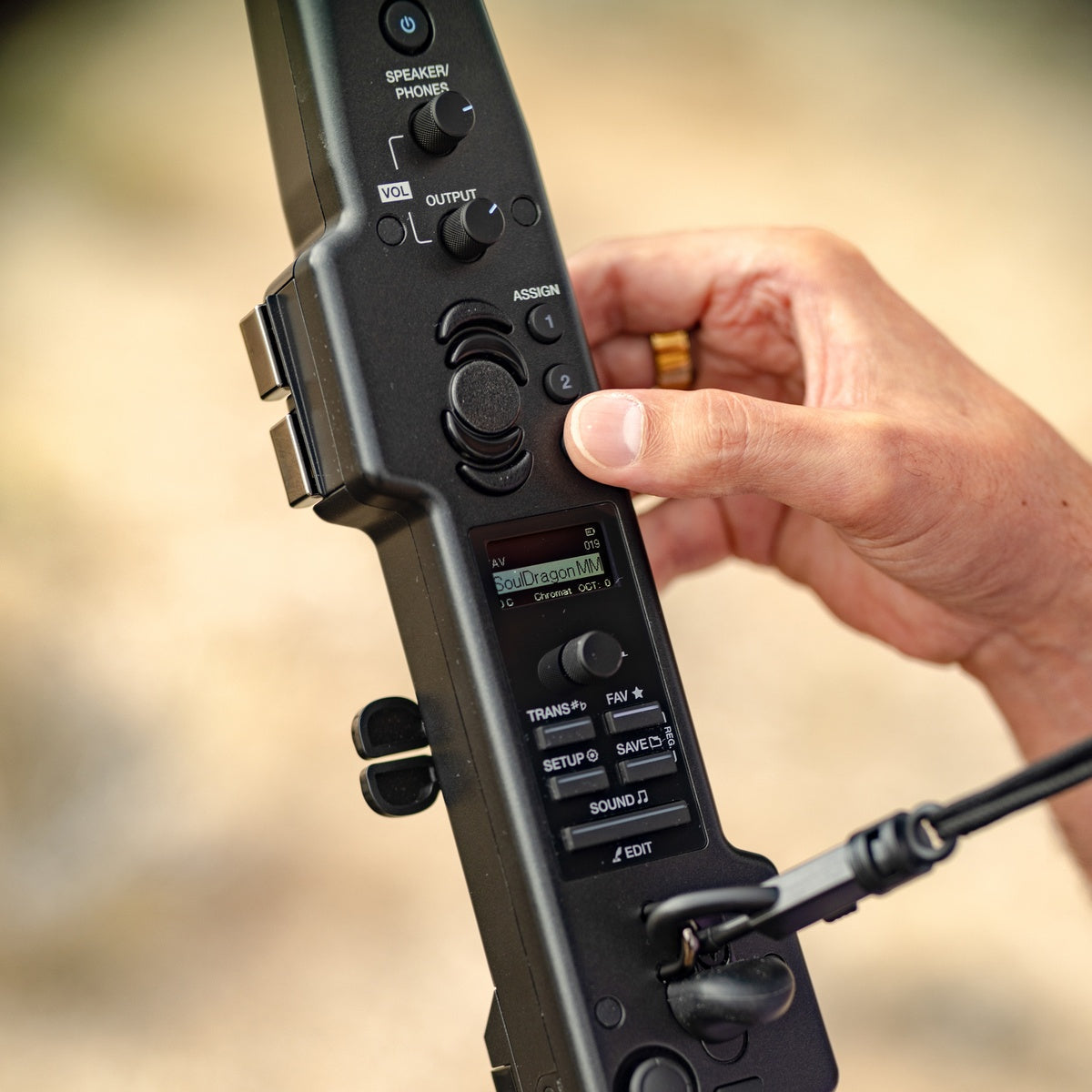

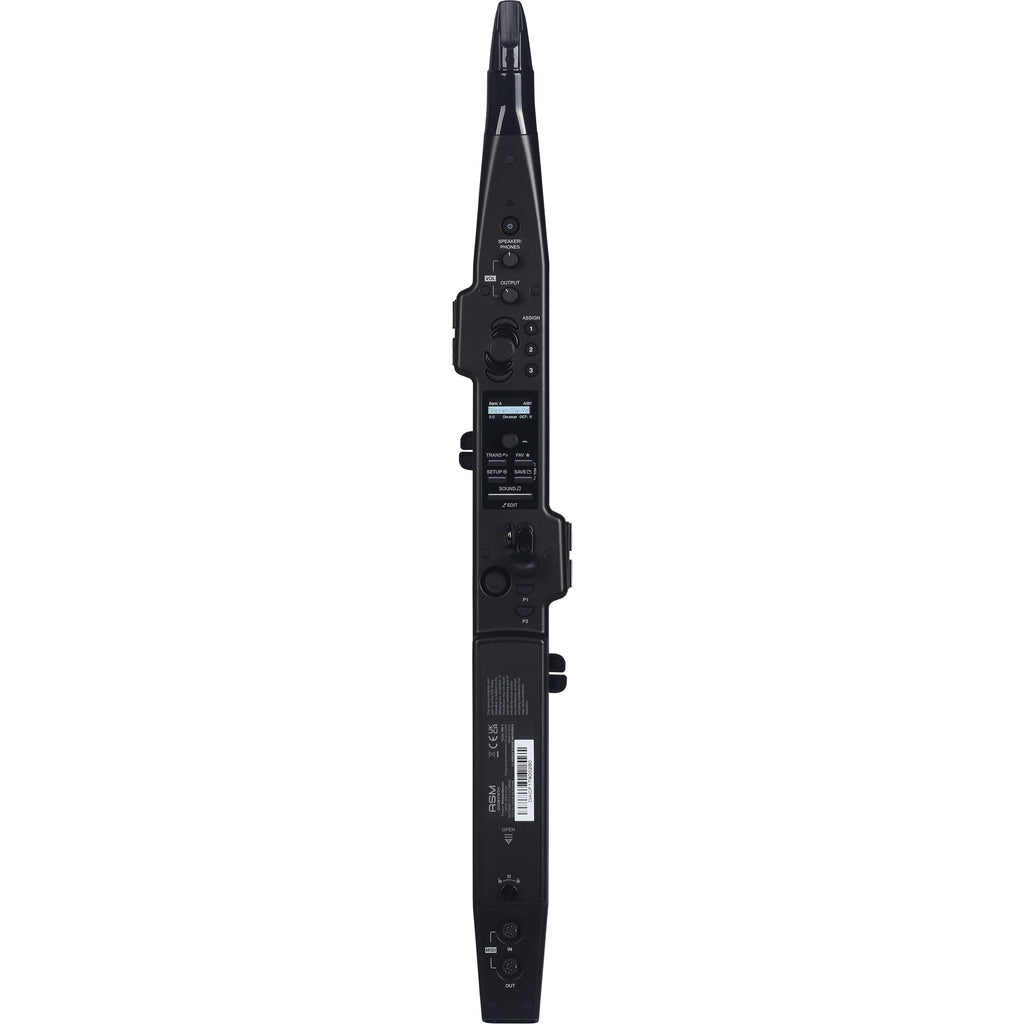

• Motion & joystick performance controls: X/Y joystick for modulation/pitch bend, two pressure pads, three assignable buttons plus built-in gyro sensor to convert physical movement into sound modulation.
• Dual-engine synthesis & sample playback: Two parts that can be layered or split, combining Hydrasynth® WaveScan oscillators + multi-sample instrument playback (128 acoustic sample sets plus hybrid sounds) for deep sonic capability.
• High-end sound engine: Includes 2 WaveScan oscillators (219 waveforms), noise generator, multi-sample oscillator, 16-mode Hydrasynth filters, 4-band EQ, insert effects, 5 LFOs (with step sequencer mode), 5 envelopes (with looping), and many player controls.
• Connectivity & power options: Built-in speaker, ¼″ TRS output, USB-C 2-in/2-out audio/MIDI, Bluetooth audio/MIDI, USB or 2× 18650 Li-Ion batteries (not included) for portable play.

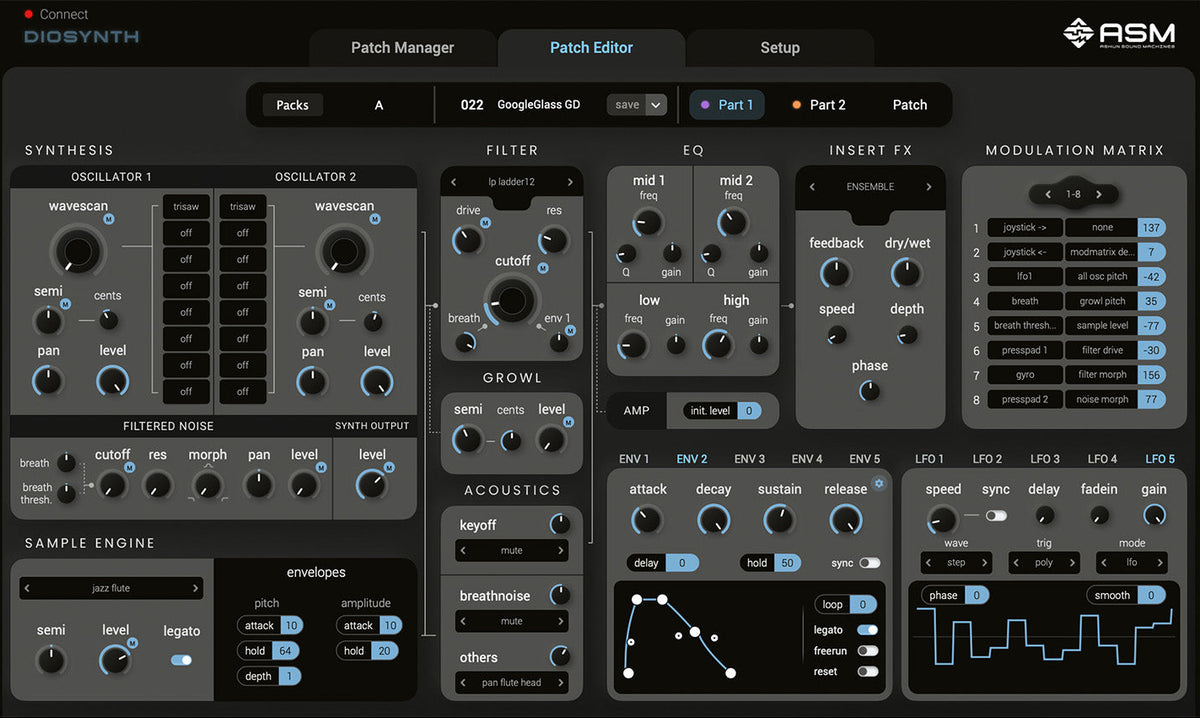

• Software editor & library: Mac/PC patch editor and manager app, iOS/Android set-list manager, 384 onboard patches (stores up to 768) with sample upload capability.

Priekšrocības

The ASM Diosynth lets wind players retain familiar ergonomics and fingerings while unlocking the sonic breadth of modern synthesis. Breath, motion, bite and joystick controls give real-time tactile modulation and expression—so you can move fluidly from jazz sax to electronic lead, sample orchestral flutes or create entirely new hybrid textures. With onboard speakers, USB/MIDI connectivity and a rich sound engine, it’s built for studio, stage and mobile performance—pieejams Soundium.

Īsas specifikācijas

• Fingering modes: Sax, Flute, Recorder, Trumpet
• Sample sets: 128 acoustic instruments + 256 synth/hybrid sounds
• Patches: 384 included, 768 max
• Synthesis engine: 2 parts, each with 2 WaveScan oscillators + sample-map oscillator + noise generator + filter/envelope/LFO matrix
• Performance controls: Breath sensor, bite sensor, X/Y joystick, 2 pressure pads, gyro sensor, 3 buttons
• Izejas: Built-in speaker, head-phone/3.5 mm jack, ¼″ TRS line output, USB-C audio/MIDI, Bluetooth audio/MIDI in
• Power options: USB-C or 2× 18650 Li-Ion (9900 mAh) batteries (not included)

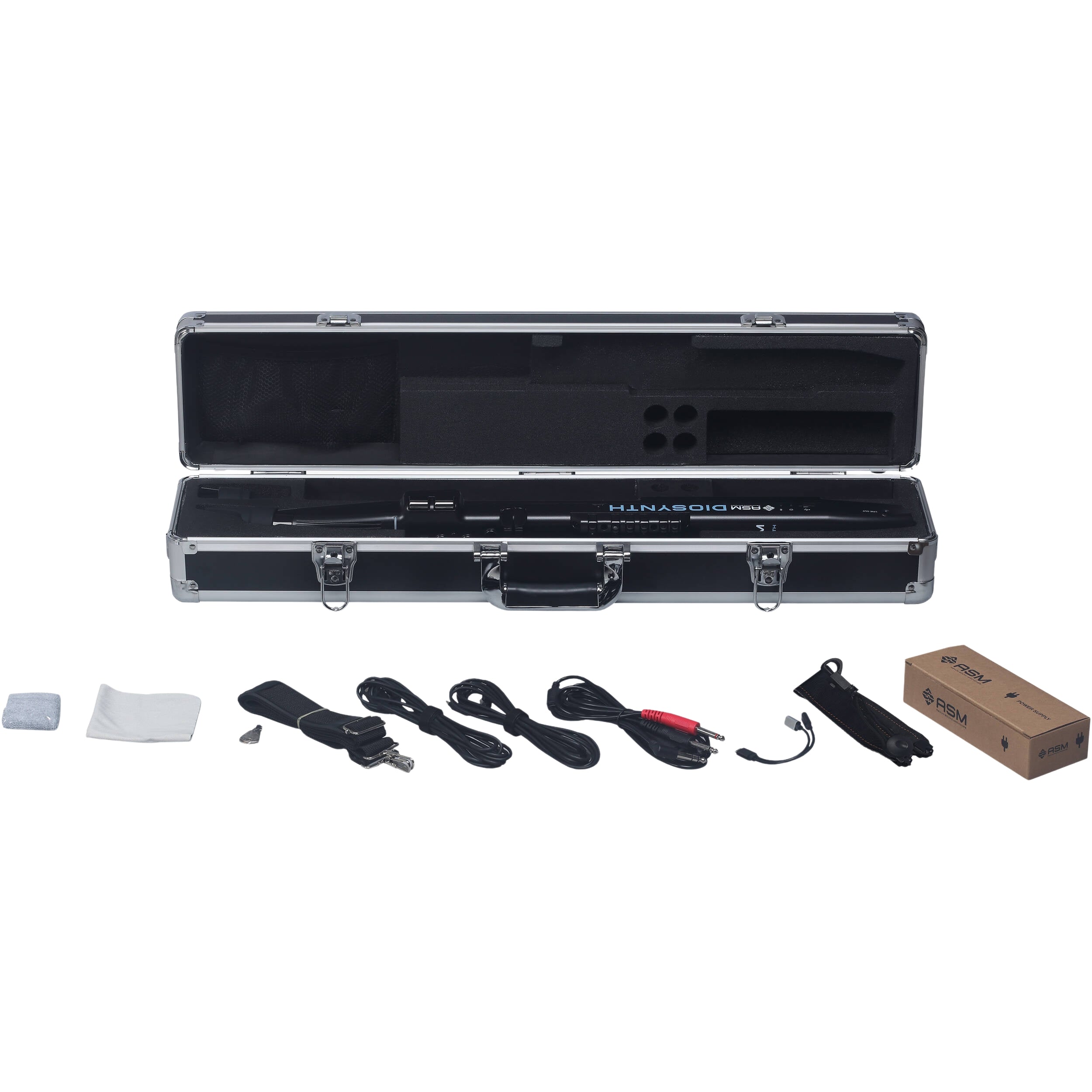

Komplektācijā

• ASM Diosynth instrument

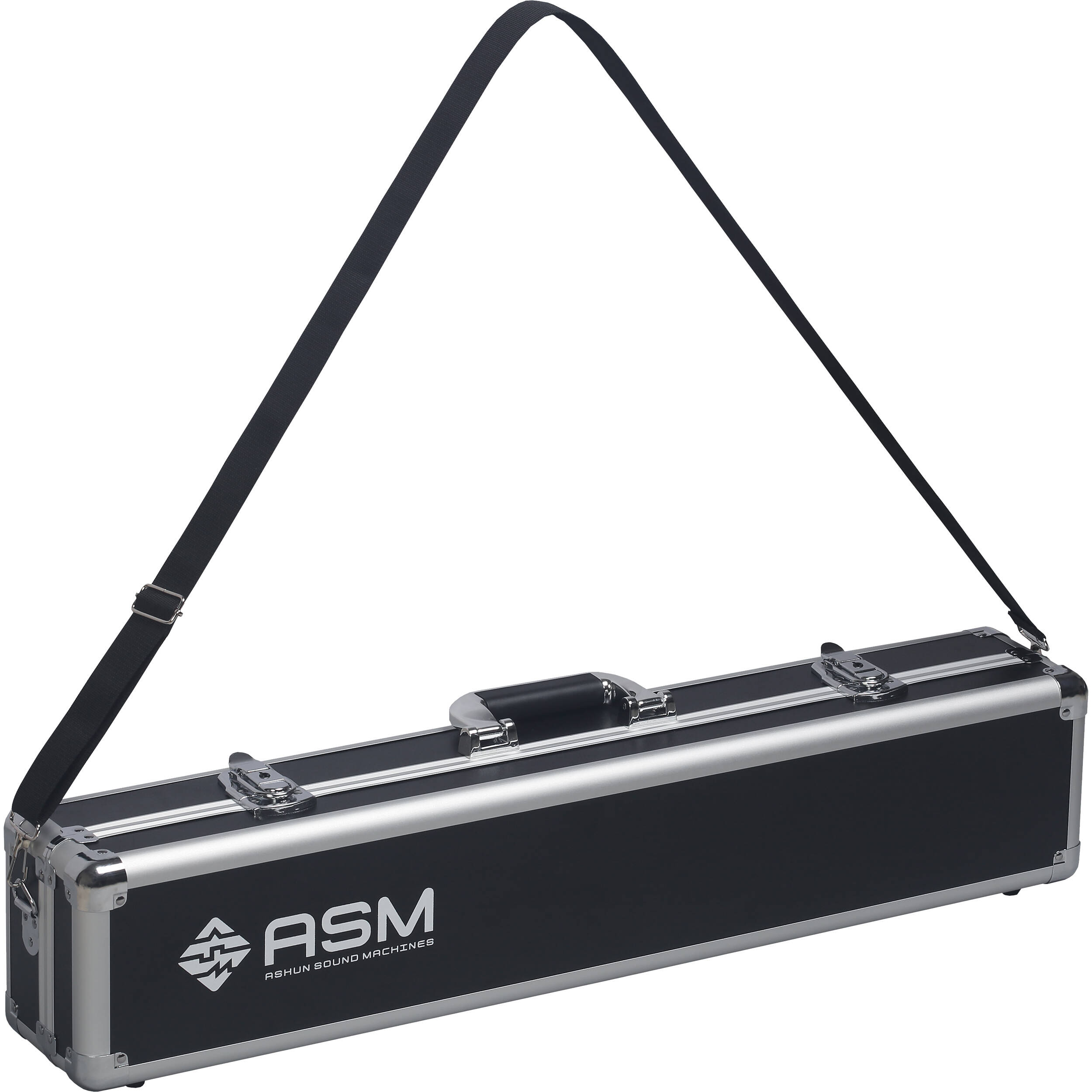

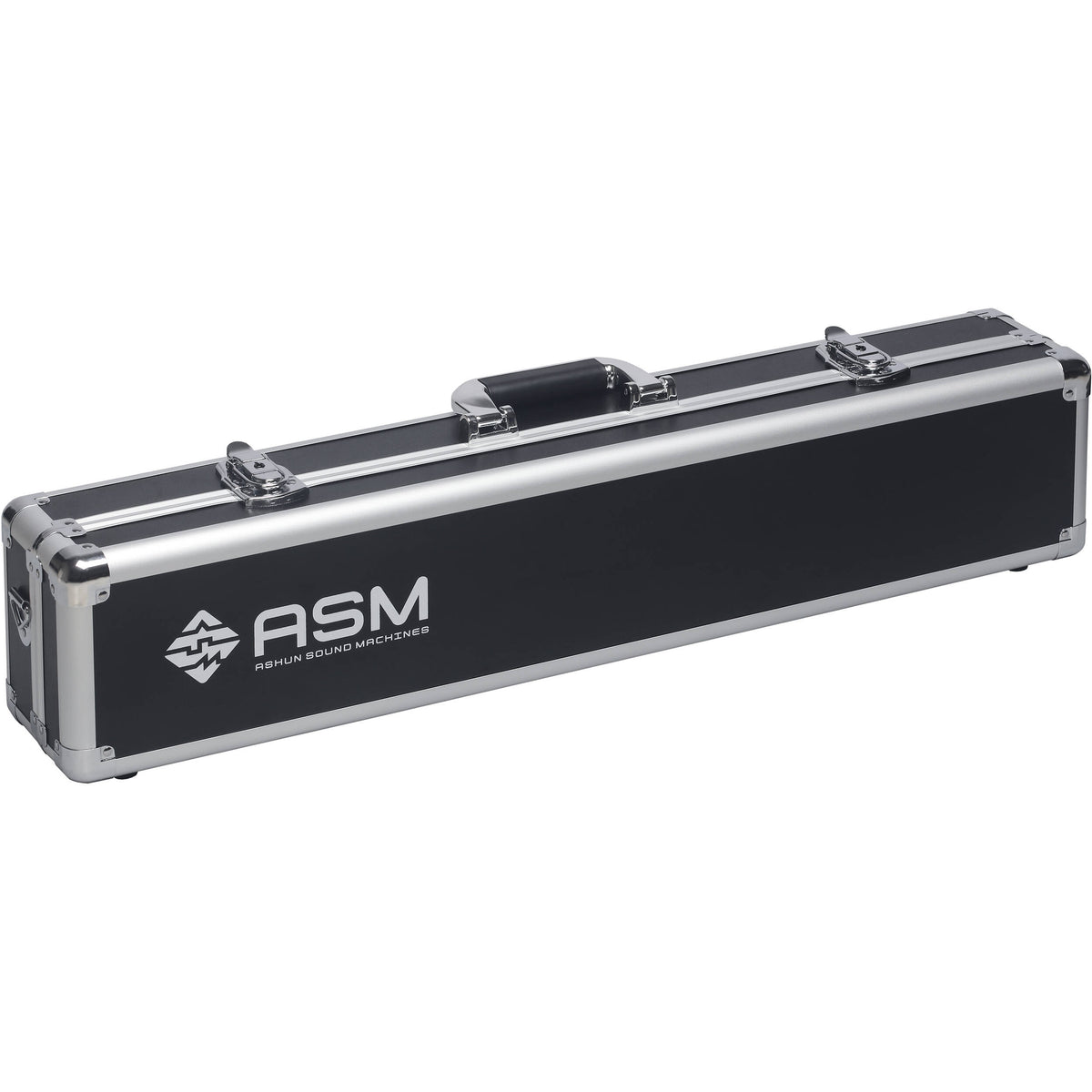

• Hardshell carry case with foam insert
• USB-C to USB-C cable
• USB-C to USB-A cable
• ¼″ TRS to split-TS audio cable
• Power adaptor
• Neck strap and shoulder sling
• Extra mouthpiece, spit scrunchie and cleaning cloth
• Owner’s manual

Piemērots

Ideal for wind instrumentalists transitioning to electronics, live performers seeking expressive control, studio producers layering wind and synth textures, mobile creators needing breath-sensitive control, and educators teaching woodwind plus synthesis techniques.

Saderība

USB-C audio/MIDI class-compliant with macOS and Windows, and Bluetooth audio/MIDI for iOS/Android. Works with any audio interface or DAW via ¼″ output or USB. Patch editor supports Mac/PC; set-list manager supports iOS/Android.

Plusi un mīnusi

✅ Plusi:

• Authentic wind-instrument ergonomics with advanced synthesis capabilities
• Highly expressive with breath, bite, motion and joystick controls
• Deep sound engine and sample library wrapped in a portable performance instrument

⚠️ Mīnusi:

• Complex feature set may require time to master
• Batteries not included—portable use may need additional investment

The ASM Diosynth opens new horizons for wind players, combining traditional instrument feel with powerful synthesis, expressive controls and modern connectivity. pieejams Soundium.
