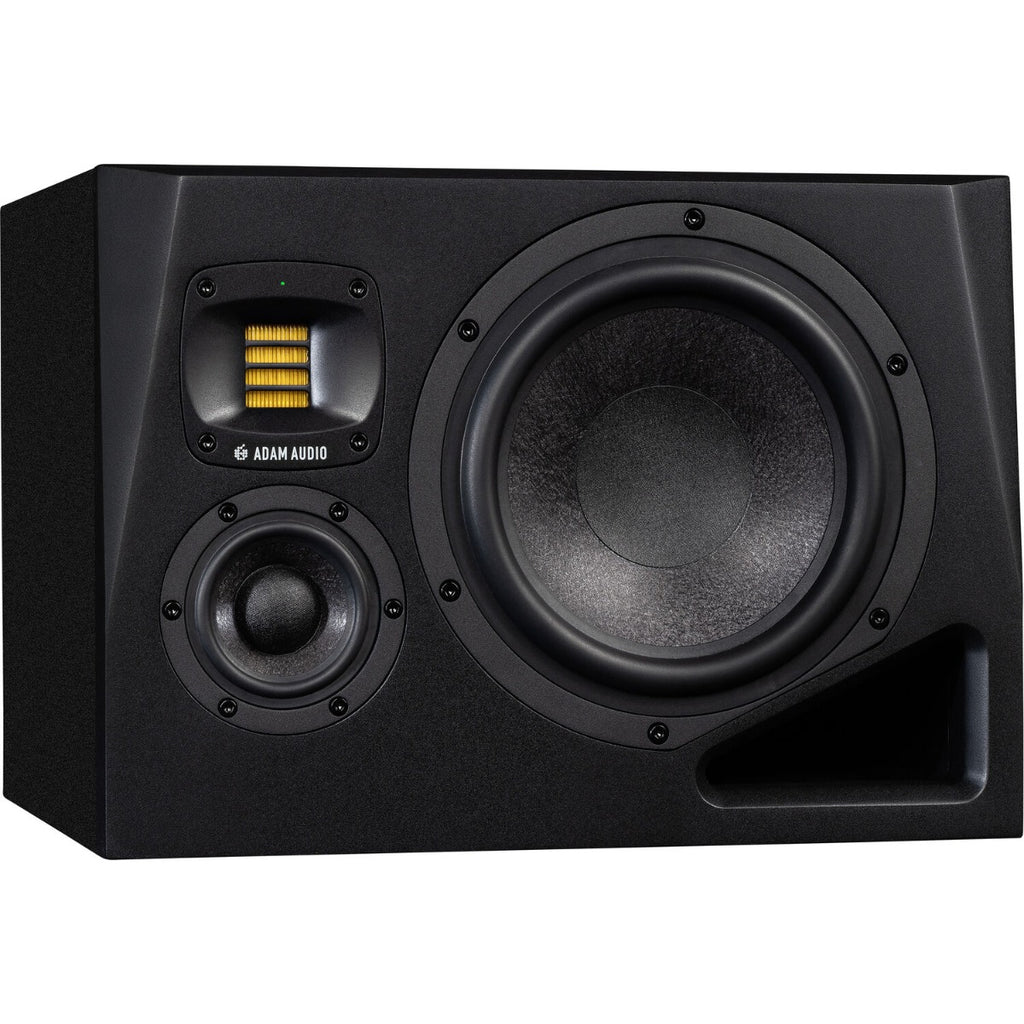

ADAM Audio A8H‑R – 8″ Midfield 3‑Way Monitor with DSP Precision

The A8H‑R is ADAM’s flagship midfield monitor, featuring an 8″ woofer, dedicated midrange, and ribbon tweeter for industry-leading clarity and imaging. Onboard DSP and room-adaptation tools ensure precise calibration and performance in larger studio environments—ekskluzīvi pieejams Soundium.

Galvenās iezīmes

• 8″ Multi‑Layer Mineral woofer: Deep, accurate bass response down to 31 Hz with minimal distortion
• 3.5″ DCH midrange driver: Smooth and transparent mid frequencies for natural vocals and instruments
• X‑ART ribbon tweeter with rotatable HPS waveguide: Ultra-detailed highs and a broad soundstage, adaptable to monitor placement
• Tri-amp hybrid amplification: 250 W RMS (woofer), 70 W (midrange), and 20 W (tweeter) for clean, powerful output
• Onboard DSP & Ethernet control: Remote EQ, delay, voicing presets, and Sonarworks SoundID support via A Control
• Room-adaptation switches: Adjustable Bass, Desk, Presence, and Treble filters for fine-tuning in varied acoustics

Priekšrocības

The A8H‑R delivers high-resolution monitoring across all frequencies, ideal for mixing, mastering, and immersive audio production. Its DSP adaptability and rotatable tweeter simplify integration into diverse studio layouts, offering reliable precision and consistent performance.

Īsas specifikācijas

• Drivers: 8″ MLM woofer, 3.5″ DCH midrange, X‑ART ribbon tweeter
• Frekvenču atbilde: 31 Hz–45 kHz (–6 dB); 34 Hz–41 kHz (±3 dB)
• Crossover frequencies: 400 Hz and 3 kHz
• Pastiprināšana: 250 W Class-D (LF), 70 W Class-AB (MF), 20 W Class-AB (HF)
• Maks. SPL: 105 dB peak @ 1 m

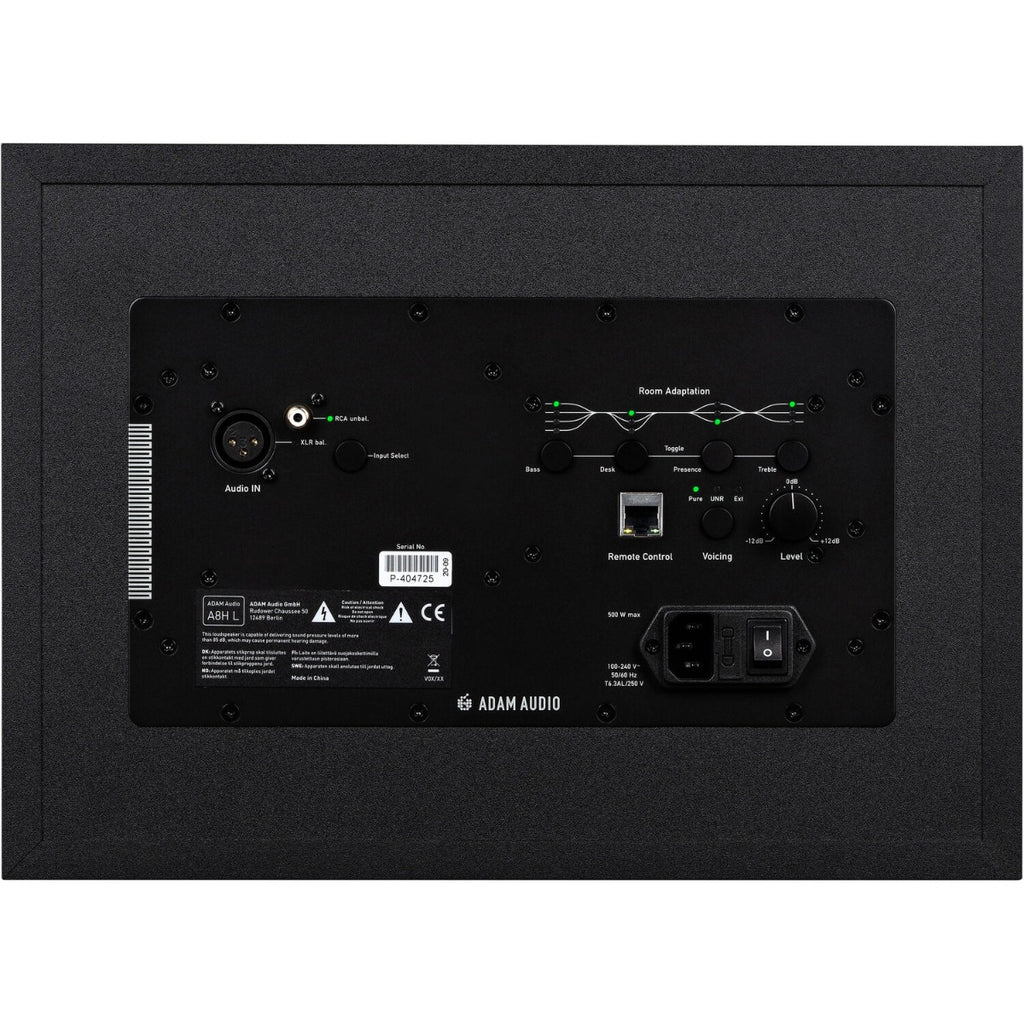

• Ieejas: Balanced XLR, Unbalanced RCA, RJ45 (Ethernet DSP)
• Izmēri: 27.4 × 38.2 × 32.9 cm
• Svars: 13.6 kg
• Power consumption: 220 W max; IEC cable included

Komplektācijā

• ADAM Audio A8H‑R powered midfield monitor (right)
• IEC power cable
• Quick start guide & warranty documentation

Piemērots

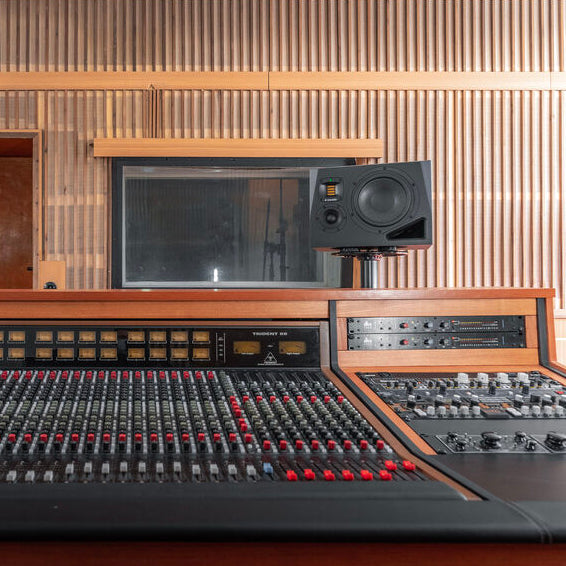

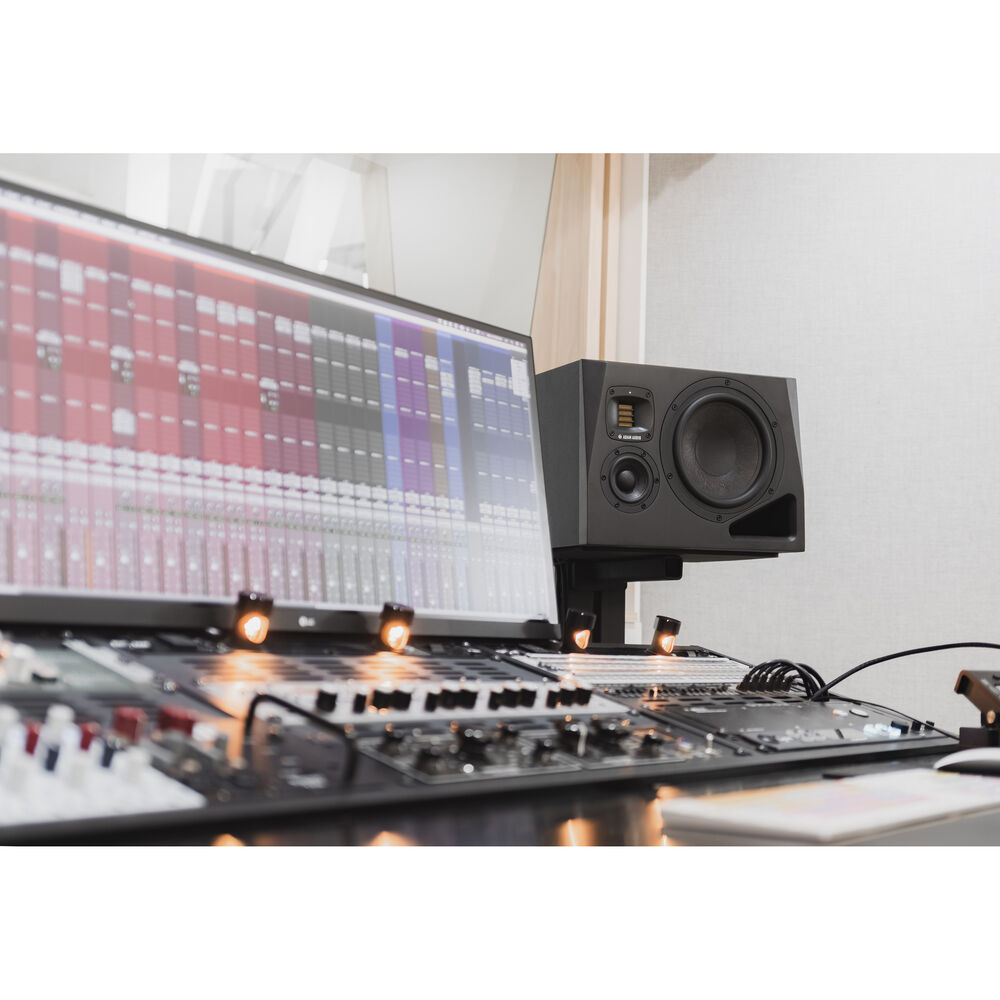

Engineered for midfield and large control rooms, especially in stereo or immersive arrays, the A8H‑R excels in professional mixing, mastering, broadcast, and immersive audio work.

Saderība

Integrates easily with audio interfaces, DAWs, and subwoofers via XLR/RCA. Full DSP features accessed with Ethernet and ADAM’s A Control. Compatible with room-calibration systems like Sonarworks SoundID.

Plusi un mīnusi

✅ Plusi:

• Exceptional clarity and balanced frequency response
• DSP tuning and rotatable tweeter streamline room integration
• Tri-amped design delivers clean power even at high SPLs
• Built for professional accuracy in larger spaces

⚠️ Mīnusi:

• Requires Ethernet and software access to unlock full DSP capabilities
• Heavy and sizeable unit requiring adequate space and mounting

For studios seeking tri-amped, DSP-enhanced midfield monitoring with pristine clarity and flexible setup, the ADAM Audio A8H‑R is the benchmark—pieejams Soundium.
