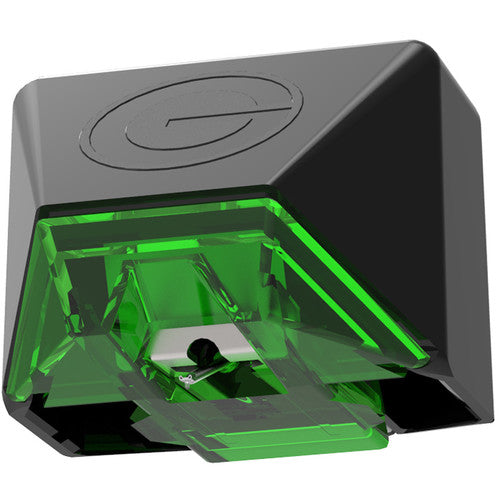

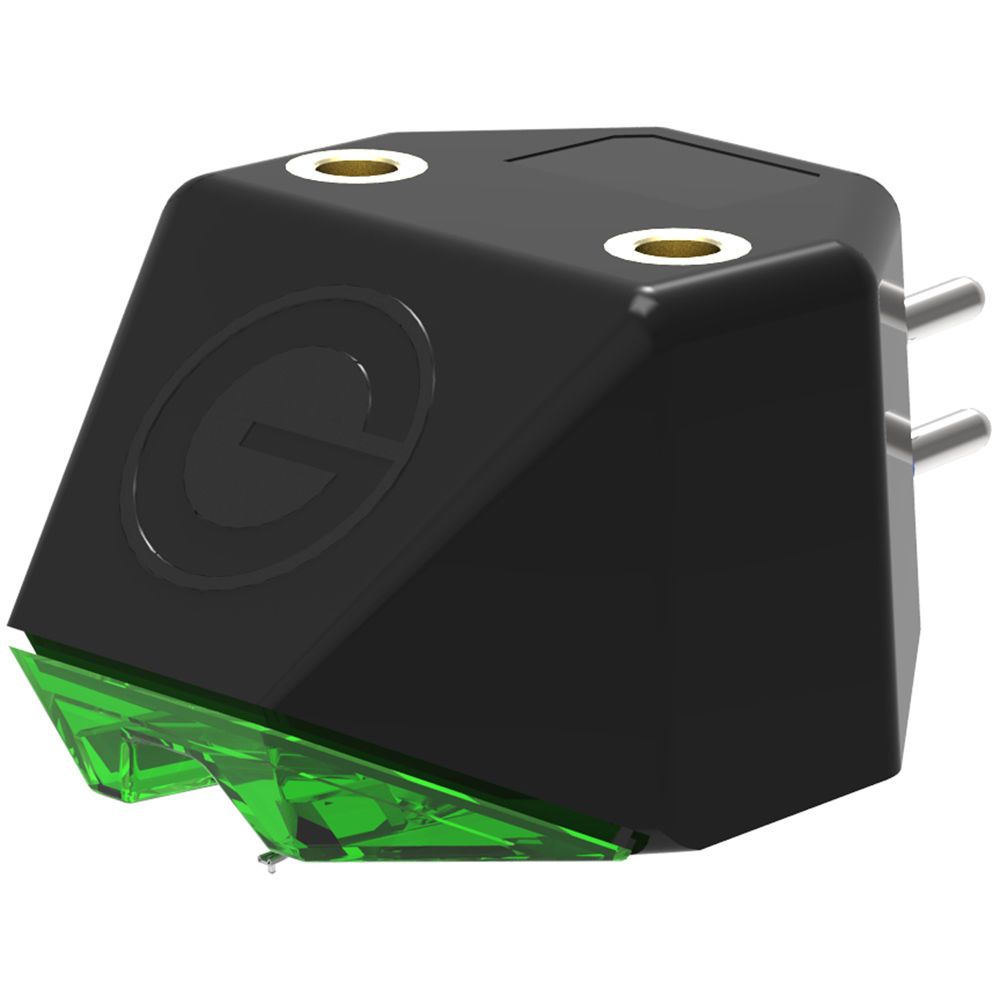

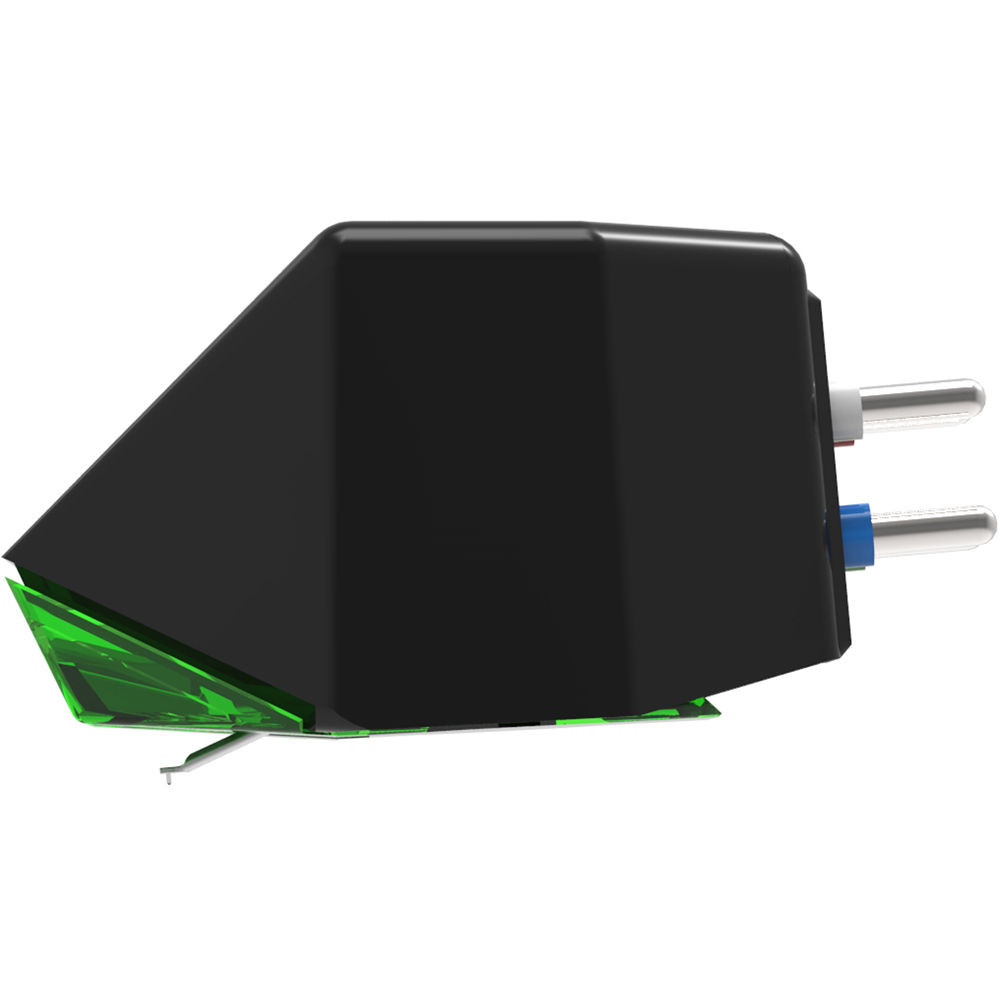

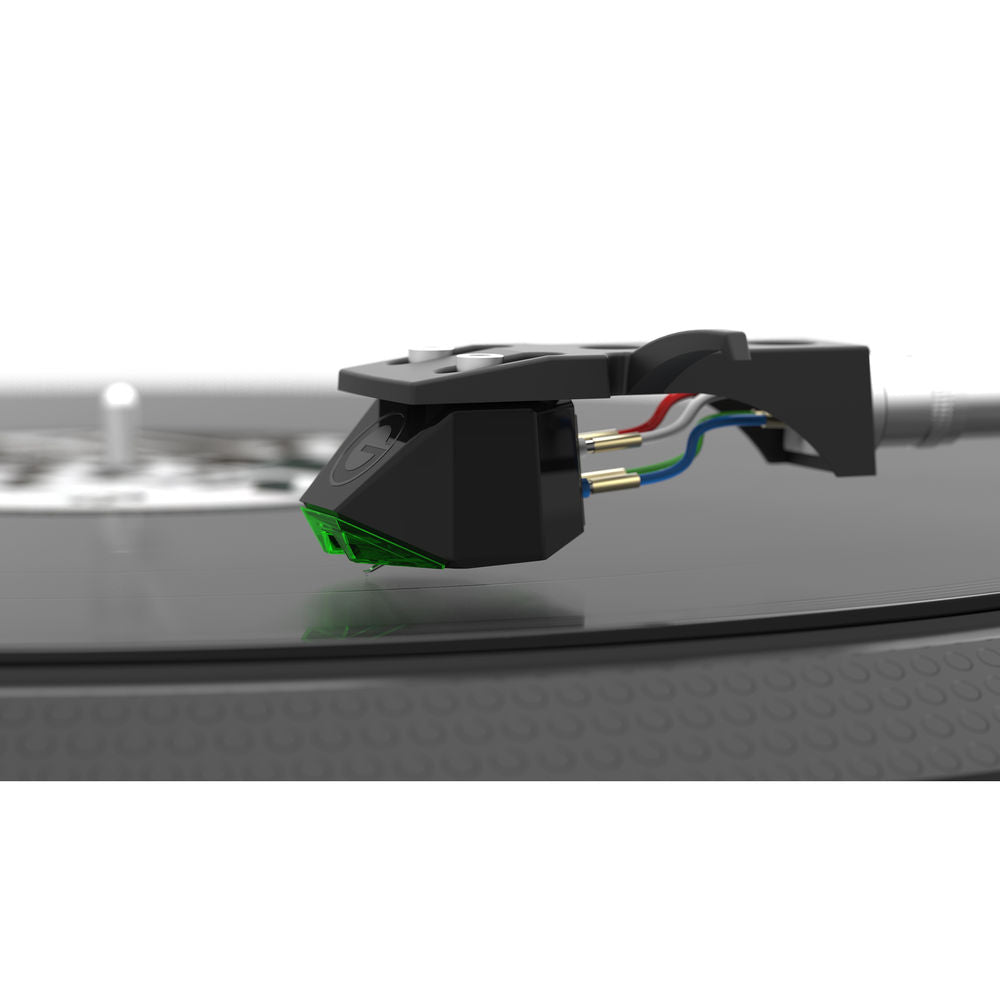

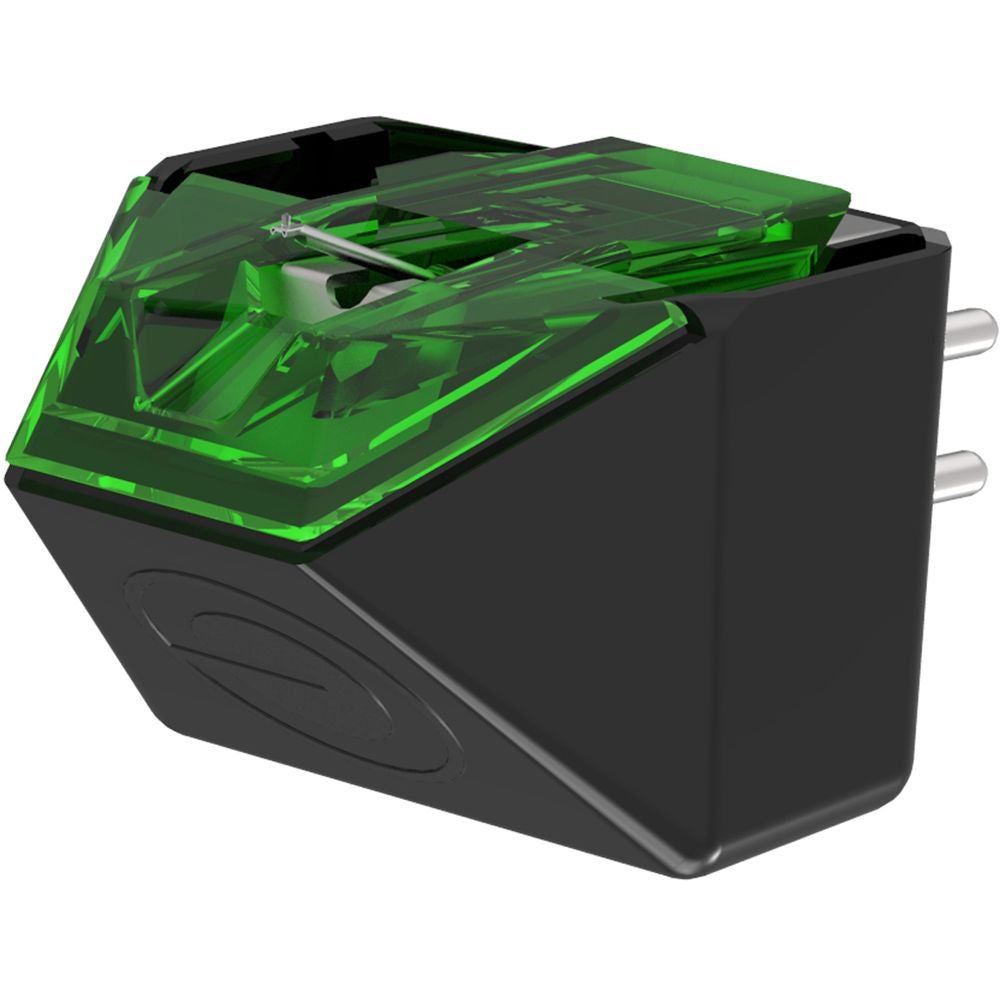

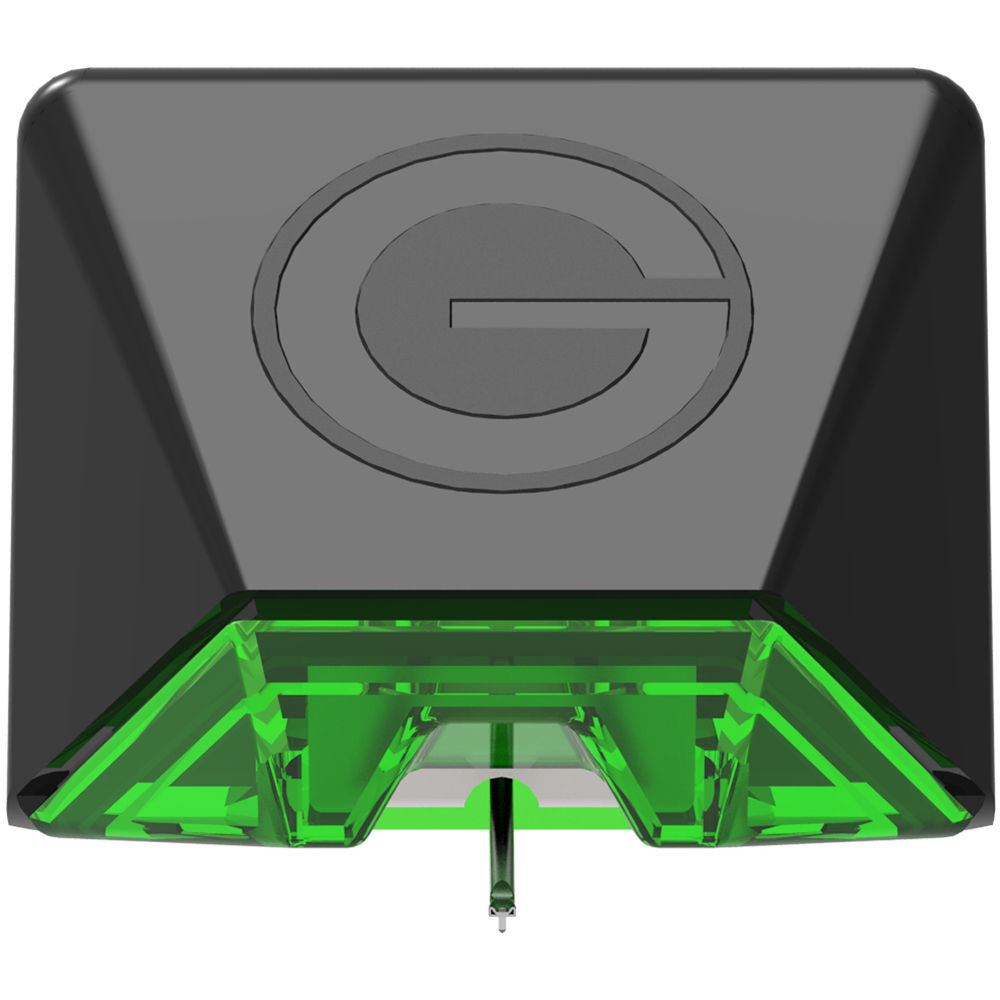

Goldring E2 – Balanced Moving Magnet Cartridge with Aluminium Cantilever
Experience stellar midrange clarity with the Goldring E2. Equipped with a spherical stylus mounted on a lightweight aluminium cantilever, the E2 accurately tracks grooves with detail and minimal distortion. It features Magnetic Duplex Technology™ for superior channel separation and comes pre-aligned for effortless installation—your refined vinyl companion, courtesy of Soundium.
Quick Specs
-
Stylus profile: Spherical, 0.6 mil tip radius
-
Cantilever: Aluminium (upgraded from E1 model)
-
Frequency range: 20 Hz – 20 kHz
-
Output voltage: 3.5 mV (1 kHz @ 5 cm/s)
-
Channel balance: ≤ 1.5 dB @ 1 kHz
-
Channel separation: > 20 dB @ 1 kHz
-
Static compliance: ~20 mm/N
-
Vertical tracking angle (VTA): 20°
-
Load impedance: 47 kΩ
-
Load capacitance: 100–200 pF
-
Internal inductance / resistance: 400 mH / 410 Ω
-
Cartridge mass: ~6.9 g
-
Mounting centres: 12.7 mm (½ in)
-
Recommended tracking force: 1.5–2.5 g (ideal 2.0 g)
What’s in the Box
- Goldring E2 Moving Magnet cartridge (green body)
- Pre-installed protective stylus guard
- Captive mounting bolts or nuts
- Instruction leaflet for easy alignment and setup
